In the world of acoustic sensing, microphone technology plays a central role in shaping performance, cost, and integration complexity. Among the most established principles are electrodynamic (dynamic) microphones and electrostatic (condenser) microphones. While both convert acoustic pressure into electrical signals, their operating principles lead to significant differences in sensitivity, bandwidth, noise performance, and application suitability.
Operating Principles

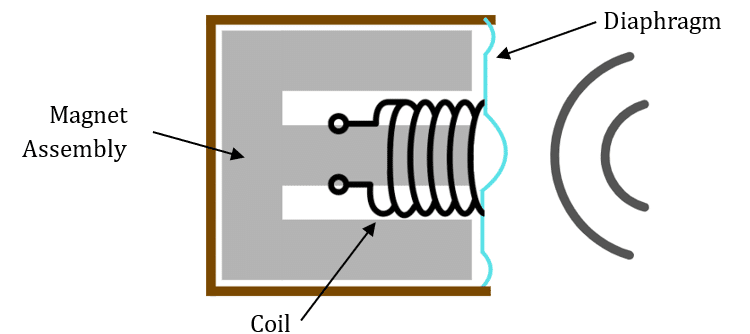

As illustrated in Figure 1, dynamic microphones operate on electromagnetic induction. A diaphragm is attached to a coil suspended in a magnetic field. When sound waves move the diaphragm, the coil moves within the magnetic field, generating a voltage proportional to the acoustic pressure.
Electrostatic microphones (commonly known as condenser microphones) rely on a variable capacitor principle. As illustrated in Figure 2, a thin conductive diaphragm forms one plate, positioned close to a fixed backplate. Incident sound pressure varies the spacing between these plates, modulating the capacitance and generating an electrical signal.
Unlike dynamic microphones, electrostatic microphones require a supply voltage to provide the necessary bias for operation.
Key Acoustic Performance Differences
The Table below, proposes a comparison of some of the key factors for design guidelines.
Dynamic | Electrostatic | |
|---|---|---|
Acoustic Overload Point (AOP) | Generally higher than for electrostatic (>140 dB SPL) | Estimated in between
120 and 140 dB SPL,
depending on design
|
Frequency Response | Limited high-frequency extension, often caused by a diaphragm bigger in size | Larger than for dynamic:
20k Hz and beyond (ultrasonic applications) |
Self Noise | Relatively silent, due to limited electronics | Noisier than dynamic (at comparable sizes), due to the presence of a JFET or equivalent component |
Transient Response | slow response due to higher moving mass | fast response from ultra-light diaphragms |
Strengths and Limitations
Dynamic microphones are robust, do not require external power, and can handle high sound pressure levels. They are widely used in live sound and harsh environments, but their limited sensitivity and bandwidth can restrict accuracy.
Electrostatic microphones offer superior sensitivity, excellent transient response, and extended frequency response, making them ideal for studio recording and measurement applications. However, they require biasing (phantom power or built-in electronics) and are more sensitive to environmental conditions such as humidity and temperature.
Application Perspective
From a system integration standpoint, the choice between dynamic and electrostatic microphones depends on the use case. For rugged, cost-sensitive, and high-SPL applications, dynamic microphones remain advantageous. For precision capture, voice clarity, and far-field pickup, electrostatic microphones clearly outperform.
At Seltech, we consider microphone technology as a system-level decision rather than a simple component choice. Early alignment between acoustics, electronics, and product design teams enables the selection of the right transduction principle based on performance targets, integration constraints, and end-use conditions.
Sound capture quality does not start with post-processing—it starts with choosing the right microphone principle.
