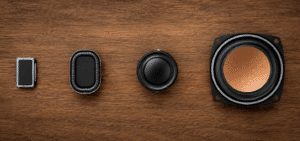

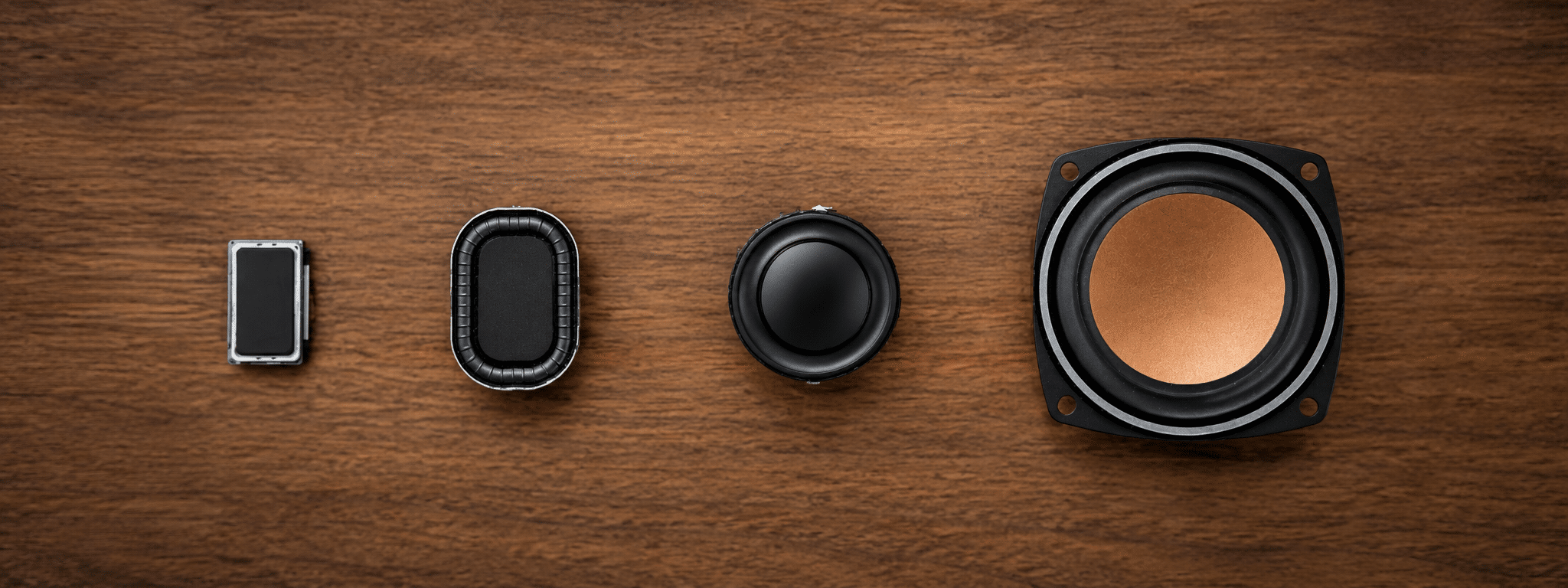

In acoustic systems, speaker diameter is one of the most influential parameters affecting sound reproduction. Whether in consumer audio, automotive systems, medical devices, or portable electronics, the size of the loudspeaker directly impacts bass extension, high-frequency reproduction, efficiency, directivity, and overall listening experience.
While larger speakers are often associated with stronger bass and smaller speakers with clearer treble, the underlying physics are based on fundamental acoustic principles that every designer should understand.
Operating Principles
As illustrated in Figure 1, a dynamic loudspeaker generates sound by moving a diaphragm attached to a voice coil located within a magnetic field.
An electrical current flowing through the voice coil generates a force, causing the diaphragm to move back and forth. The resulting air displacement creates sound waves.
The amount of air displaced depends on:
- Diaphragm surface area
- Diaphragm excursion
- Frequency
As speaker diameter increases, the diaphragm can displace more air for the same excursion.
Why Size Matters?
A dynamic loudspeaker can be approximated as a band-pass acoustic system. The low-frequency limit is largely defined by the fundamental resonance frequency (Fs) of the moving assembly, while the high-frequency limit is influenced by diaphragm diameter and its ability to behave as a rigid piston.
Low Frequencies:
A dynamic loudspeaker can be modeled as a mass-spring system, where the diaphragm and voice coil form the moving mass, and the surround and spider act as the spring.
This system exhibits a natural resonance frequency (Fs), which determines the low-frequency limit of the driver:
Fs = 12π√MmsCms
where:
- Mms = moving mass (attributed to diaphragm, coil, coil former and part of the suspensions)
- Cms = suspensions compliance
Below Fs, acoustic output decreases rapidly. Larger drivers typically combine a lower resonance frequency with greater air displacement, enabling deeper bass reproduction.
High Frequencies:
High-frequency reproduction is influenced by diaphragm size. As frequency increases, the acoustic wavelength becomes progressively shorter until it approaches the diaphragm diameter (λ ≈ D)
Since:
λ = cf
the corresponding frequency can be approximated by:
f ≈ cD
where:
- D = effective diaphragm diameter
- c = speed of sound
Above this region, cone breakup modes and directivity effects begin to limit the driver’s usable high-frequency response. Consequently, smaller diaphragms generally achieve greater high-frequency extension, while larger diaphragms are better suited for low-frequency reproduction.
Figure 2 Approximates the relationship between most popular Seltech’s speaker size and frequency bandwidth.
As diaphragm diameter increases, the driver’s practical upper frequency limit decreases, while its ability to reproduce low frequencies improves due to greater air displacement capability.
Application Perspective
In practice, no single speaker size can efficiently reproduce the entire audible frequency range.
This is why most high-performance audio systems use:
- a, multiple drivers
- b, passive or active bass enhancement techniques like Bass-Reflex, Passive Radiator or Equalization processing.
At Seltech, loudspeaker selection is a system-level decision balancing acoustic performance, integration constraints, and application requirements.
Understanding how diaphragm size influences frequency reproduction is key to selecting the right transducer for any design.
If you are evaluating speaker options for your next project, feel free to contact Seltech’s acoustic experts for guidance and product selection support.
