Developement of a custom measurement bench for passive radiators
28 August 2025
A passive radiator is a rigid membrane attached to a flexible suspension that radiates an acoustic wave when it vibrates…
A passive radiator is a rigid membrane attached to a flexible suspension that radiates an acoustic wave when it vibrates…
Speaker modules are compact units that integrate a speaker element with essential components, such as connector and enclosures, into a single package. They simplify the addition of audio output to devices by providing a ready-to-use solution that requires minimal external parts. Commonly used in smartphones, IoT devices, and other electronics, these modules offer ease of integration and consistent performance, accelerating product development and enhancing sound quality.
| Image | Name | Description | Dimensions (LxWxH) [mm] | Nominal Power [W] | Sensitivity @ rated voltage/1m [dB SPL] | F0 (Hz) |
|---|---|---|---|---|---|---|

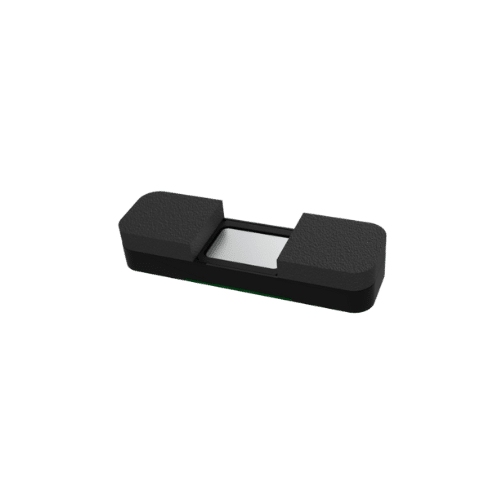

| BOX1-18082 series | SPK Box with CR1511L030UN8-2 | 40x12x4 | 0.8 | 70 | 1000 |

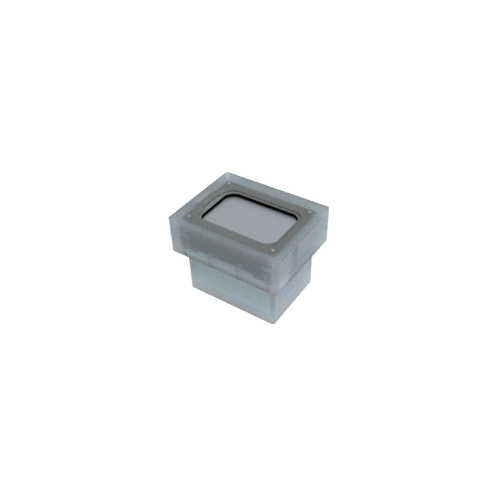

| BOX1-17041-2 | SPK Box with BR1511L035UN6, 32mm wires and connector | 17.4x13.8x13 | 0.7 | 72 | 900 |

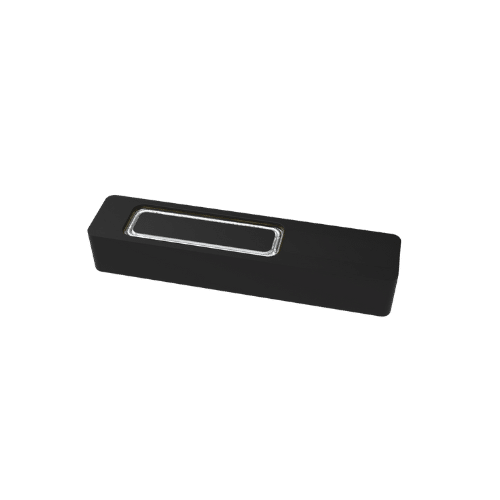

| BOX-CR3411 | SPK Box with CR3411S040BN4 and 100mm wires | 65x14x11 | 2 | 75 | 580 |

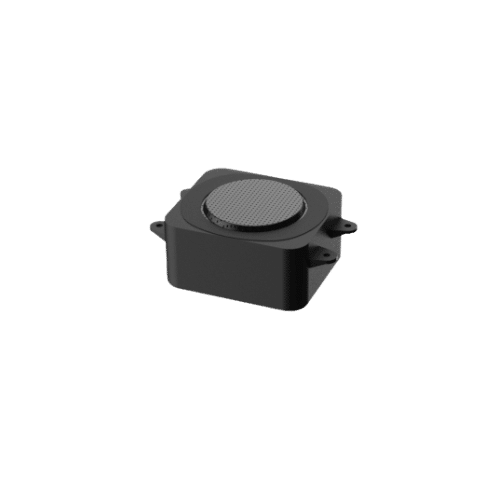

| BOX200401-V2 | SPK Box with TEBM28C10-4, 270mm wires and MOLEX 4364-00201 | 96x65x38.5 | 10 | 84 | 300 |
| BOX1-14074-4 | SPK Box with BR1511L035UN6 and 18mm wires | 30x16x6 | 1 | 72 | 900 |
Speaker modules are compact units that integrate a speaker element with essential components, such as connector and enclosures, into a single package. They simplify the addition of audio output to devices by providing a ready-to-use solution that requires minimal external parts. Commonly used in smartphones, IoT devices, and other electronics, these modules offer ease of integration and consistent performance, accelerating product development and enhancing sound quality.
| Image | Name | Description | Dimensions (LxWxH) [mm] | Nominal Power [W] | Sensitivity @ rated voltage/1m [dB SPL] | F0 (Hz) |
|---|---|---|---|---|---|---|
|
| BOX1-18082 series | SPK Box with CR1511L030UN8-2 | 40x12x4 | 0.8 | 70 | 1000 |
|
| BOX1-17041-2 | SPK Box with BR1511L035UN6, 32mm wires and connector | 17.4x13.8x13 | 0.7 | 72 | 900 |
|
| BOX-CR3411 | SPK Box with CR3411S040BN4 and 100mm wires | 65x14x11 | 2 | 75 | 580 |
|
| BOX200401-V2 | SPK Box with TEBM28C10-4, 270mm wires and MOLEX 4364-00201 | 96x65x38.5 | 10 | 84 | 300 |
|
| BOX1-14074-4 | SPK Box with BR1511L035UN6 and 18mm wires | 30x16x6 | 1 | 72 | 900 |
