Balanced Armature Receivers

Balanced armature receivers are miniature transducers that convert electrical signals into sound within hearing aids and in-ear monitors. They employ a tiny armature suspended between magnets, delivering precise and efficient audio reproduction. Enhance your acoustic devices with Knowles’ balanced armature receivers. They can be customized for sensitivity, frequency response, and impedance, offering superior sound quality and performance tailored to your specific needs.

Filter: Reset

Image	Name	Frequency response curve	Configuration	Diameter / length [mm]	Width [mm]	Thickness [mm]	DC resistance [Ohm]	Sensitivity @ 1kHz, 100 mV, in coupler [dB SPL]	Vented	Product status

Name	Frequency response curve	Configuration	Diameter / length [mm]	Width [mm]	Thickness [mm]	DC resistance [Ohm]	Sensitivity @ 1kHz, 100 mV, in coupler [dB SPL]	Vented	Product status
WBFK-33649-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-33213-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Active
RAN-33860-000	Tweeter	Single	5.1	2.8	2	14	94	No	Active

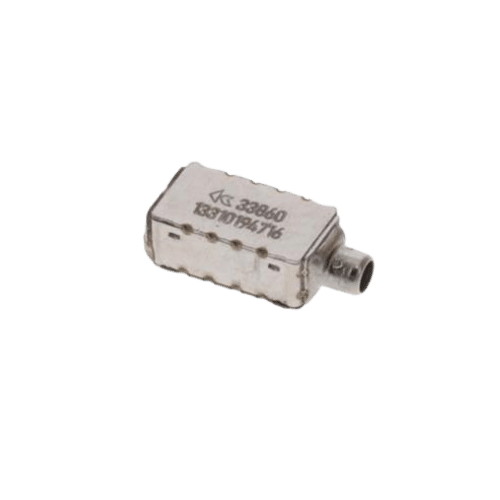

RAN-33860-B148	Tweeter	Single	5.1	2.8	2	13	94	No	Active
RAQ-35091-000	Full range	Single	5.32	3.06	2.69	25	105	Yes	Active
RAQ-33985-000	Full range	Single	5.32	3.06	2.69	25	104.5	No	Active
RAQ-33862-000	Full range	Single	5.32	3.06	2.69	25	106	No	Active
RDI-33216-000	Woofer	Dual	7.87	4.09	5.23	8.8	120	Yes	Active
RDI-34727-000	Woofer - Midrange	Dual	7.87	4.09	5.23	8.69	120	Yes	Active
RDU-35000-000	Tweeter	Dual	5.1	4.1	2.8	7.2	81	No	Preferred
RLI-35178-000	Woofer - Dual diaphgram	Dual diaphgram	7.87	4.09	3.56	28	120	Yes	Preferred
RLQ-34240-000	Woofer - Midrange Dual diaphgram	Dual diaphgram	5.3	3.1	3.3	22.5	111	Yes	Preferred
RQU-35066-000	Tweeter	Quad	5.8	5.11	4.14	12	88.5	No	Preferred
RQU-35104-000	Tweeter	Quad	5.8	5.11	4.14	3.1	88	No	Preferred
RAB-32146-000	Full range	Single	5.15	2.96	2.58				Active
HC-33617-000	Full range	Single	5.16	3.51	3	20	105	No	Active
HODTEC-32410-000	Woofer	Dual	7.87	4.09	5.23	71	112.7	No	Active
HODVTEC-32951-000	Woofer	Dual	7.87	4.09	5.59	8.5	116	Yes	Active
HOTEC-32025-000	Woofer	Single							Active
GR-33534-000			6.1	3.2	4.32				Active
GD30-32663-000			6.1	3.2	2.69				Active
GD-33063-000			5.99	3.12	2.59				Active
GQ-33893-000	Full range	Multiway	6.3	4.29	4.92				Preferred
FK-31818-000	Tweeter	Single	5	2.73	1.93				Active
FK-32224-000	Tweeter	Single	5	2.73	1.93				Active
FK-33399-000	Tweeter	Single	5	2.73	1.93	200	95	No	Active
GD30-31719-000	Woofer - Midrange	Dual	6.1	3.2	2.69	201	100	No	Active
FC-26214-000	Midrange	Single	5.17	3.54	3	1165	104	No	Active
ED-33465-000	Full range	Single	6.3	4.29	2.97	22.4	108.5	No	Active
ED-26876-000	Full range	Single	6.3	4.29	2.97	25	102.5	Yes	Active
DTEC-32256-000	Woofer	Dual	7.87	4.09	5.59				Active
DTEC-33152-000	Woofer-mid	Dual	7.87	5.59	4.09	11	115	No	Active
ED-21950-000	Woofer - Midrange	Single	6.3	4.29	2.97	127	104	No	Active
CI-26697-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-30847-000	Woofer	Single	9.47	7.18	4.1	20	125	No	Active
CI-32139-000	Woofer	Single	9.47	7.18	4.1	20	125.5	No	Preferred
CI-32984-000	Woofer - Midrange	Single	9.47	7.18	4.1	19.7	125	Yes	Preferred
DFK-33765-000	Woofer	Dual	5	2.73	3.86	35	101	No	Active
BK-26877-000	Woofer - Midrange	Single	7.87	5.59	4.01	20	108	Yes	Preferred
RAU-34832-B148	SuperTweeter	Single	5.1	2.8	2	12	79	No	Preferred
GM-34020-000	Full range	Multiway	5.16	2.96	4.51	22	103	No	Preferred
RDI-33438-000	Woofer - Midrange	Dual	7.87	4.09	5.23	8.69	120	Yes	Preferred
GR-31653-000	Woofer - Midrange	Dual	6.1	3.2	4.32	76	103	No	Active
TWFK-31129-000	Midrange - Tweeter	Dual	5	2.73	3.86	25	95	No	Preferred
TWFK-32689-000	Full range	Dual	5	2.73	3.86	25	100	Yes	Preferred
TWFK-33527-000	Midrange - Tweeter	Dual	5	2.73	3.86	25	95	No	Preferred
WBFK-23990-000	Tweeter	Single	5	2.73	1.93	50	91	No	Active
WBFK-30000-000	Tweeter	Single	5	2.73	1.93	100	95	No	Preferred
WBFK-30019-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-30042-000	Tweeter	Single	5	2.73	1.93	100	95	No	Preferred
WBFK-30095-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Active
WBFK-30111-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-31142-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-32258-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
RAB-32066-000	Woofer - Midrange	Single	5.3	3.28	2.73	65	101.5	No	Preferred
RAB-32154-000	Full range	Single	5.15	2.96	2.58	21	101	No	Active
RAB-32167-000	Full range	Single	5.15	2.96	2.58	247	102.5	No	Active
RAB-32168-000	Woofer - Midrange	Single	5.15	2.96	2.58	65	102.5	No	Active
RAB-32257-000	Full range	Single	5.15	2.96	2.58	22	105.5	Yes	Preferred
RAB-32667-000	Full range	Single	5.15	2.96	2.58	154	101	No	Active
SWFK-31736-000	Tweeter	Dual	5	2.73	3.86	6.3	97	No	Preferred
SWFK-32254-000	Tweeter	Dual	5	2.73	3.86	6.3	97	No	Preferred
SWFK-32255-000	Tweeter	Dual	5	2.73	3.86	6.3	96.5	No	Preferred
SWFK-33108-000	Tweeter	Dual	5	2.73	3.86	6.3	94	No	Preferred
TEC-30006-000	Midrange	Single	7.87	4.09	2.79	46	117	No	Active
TEC-30033-000	Midrange	Single	7.87	4.09	2.79	22	117	No	Active
TWFK-23991-000	Full range	Dual	5	2.73	3.86	100	95	Yes	Active
TWFK-30017-000	Full range	Dual	5	2.73	3.86	25	95	Yes	Preferred
HC-32729-000	Woofer - Midrange	Single	5.16	3.51	3	20	101	No	Active
HODTEC-31230-000	Woofer - Midrange	Dual	7.87	4.09	5.23	26.5	120	No	Active
HODTEC-31268-000	Woofer	Dual	7.87	4.09	5.23	71	113	No	Active
HODTEC-31323-000	Woofer	Dual	7.87	4.09	5.23	26.5	120	No	Active
HODTEC-31515-000	Woofer	Dual	7.87	4.09	5.23	27.2	113	No	Active
HODTEC-32024-000	Woofer - Midrange	Dual	7.87	4.09	5.23	15.2	120	No	Active
HODVTEC-31516-000	Woofer	Dual	7.87	4.09	5.59	102	120	Yes	Preferred
HODVTEC-31618-000	Woofer	Dual	7.87	4.09	5.59	8.6	122	Yes	Preferred
RAB-31761-000	Woofer - Midrange	Single	5.15	2.96	2.58	178	101	No	Active
RAB-32016-000	Full range	Single	5.15	2.96	2.58	116	101.5	No	Active
RAB-32033-000	Full range	Single	5.15	2.96	2.58	22	106	Yes	Preferred
RAB-32057-000	Woofer - Midrange	Single	5.15	2.96	2.58	65	101.5	No	Preferred
RAB-32063-000	Full range	Single	5.15	2.96	2.58	22	103.5	No	Preferred
HC-26766-000	Woofer - Midrange	Single	5.16	3.51	3	120	101	No	Active
GR-31459-000	Woofer - Midrange	Dual	6.1	3.2	4.32	40.9	113	No	Active
GR-31502-000	Woofer - Midrange	Dual	6.1	3.2	4.32	76	103	No	Active
GR-31570-000	Woofer - Midrange	Dual	6.1	3.2	4.32	40.9	103	No	Active
GR-31711-000	Woofer - Midrange	Dual	6.1	3.2	4.32	29	103	No	Active
GR-31767-000	Woofer - Midrange	Dual	6.1	3.2	4.32	76	103	No	Active
GU-32829-000	Full range	Multiway	7.87	5.59	5.94	16	113	Yes	Preferred
GV-32830-000	Full range	Multiway	7.87	5.59	6.78	35	113	Yes	Preferred
HC-23724-000	Woofer - Midrange	Single	5.16	3.51	3	63	101	No	Active
HC-23763-000	Woofer - Midrange	Single	5.16	3.51	3	11.5	101	No	Active
HC-23769-000	Woofer - Midrange	Single	5.16	3.51	3	120	101	No	Active
FK-30817-000	Woofer - Midrange	Single	5	2.73	1.93	50	95	No	Preferred
FK-30861-000	Woofer - Midrange	Single	5	2.73	1.93	360	95	No	Active
FK-31059-000	Midrange	Single	5	2.73	1.93	360	95	No	Active
FK-32628-000	Woofer - Midrange	Single	5	2.73	1.93	25	100.5	Yes	Active
GD30-31488-000	Woofer - Midrange	Dual	6.1	3.2	2.69	201	100	No	Active
GD30-31527-000	Woofer - Midrange	Dual	6.1	3.2	2.69	105	100	No	Preferred
GD30-31593-000	Woofer - Midrange	Dual	6.1	3.2	2.69	165	100	No	Active
GD-31133-000	Woofer - Midrange	Dual	5.99	3.12	2.59	78.9	100	No	Preferred
GD-31223-000	Woofer - Midrange	Dual	5.99	3.12	2.59	105	100	No	Preferred
GD-31269-000	Woofer - Midrange	Dual	7.3	3.61	3.1	105	100	No	Preferred
GD-31288-000	Woofer - Midrange	Dual	5.99	3.12	2.59	201	100	No	Preferred
GD-31440-000	Woofer - Midrange	Dual	5.99	3.12	2.59	165	100	No	Preferred
GD-31475-000	Woofer - Midrange	Dual	5.99	3.12	2.59	33.5	100	No	Active
GK-31732-000	Full range	Multiway	9.46	7.18	6.81	24.1	113	No	Preferred
FH-26719-000	Midrange	Single	5.09	2.8	2.59	52	100	No	Preferred
FH-26745-000	Woofer - Midrange	Single	5.09	2.8	2.59	60	96	No	Preferred
FK-23451-000	Midrange	Single	5	2.73	1.93	360	95.5	No	Preferred
FK-26260-000	Woofer - Midrange	Single	5	2.73	1.93	135	95.5	No	Preferred
FK-26433-000	Midrange	Single	5	2.73	1.93	580	93.5	No	Active
FK-26768-000	Midrange	Single	5	2.73	1.93	580	95	No	Preferred
FK-26777-000	Midrange	Single	5	2.73	1.93	135	96	No	Preferred
FK-26816-000	Woofer - Midrange	Single	5	2.73	1.93	57	95	No	Active
FK-26888-000	Woofer - Midrange	Single	5	2.73	1.93	580	93	No	Active
FK-26889-000	Woofer - Midrange	Single	5	2.73	1.93	580	93	No	Preferred
FK-30030-000	Woofer - Midrange	Single	5	2.73	1.93	360	95	Yes	Active
FH-23371-000	Midrange	Single	5.09	2.8	2.59	60	100	No	Preferred
FH-23373-000	Midrange	Single	5.09	2.8	2.59	125	100	No	Preferred
FH-23375-000	Midrange	Single	5.09	2.8	2.59	240	100	No	Preferred
FH-23377-000	Midrange	Single	5.09	2.8	2.59	515	100	No	Preferred
FH-23469-000	Midrange	Single	5.09	2.8	2.59	245	99.5	No	Preferred
FH-23605-000	Midrange	Single	5.09	2.8	2.59	240	100	No	Preferred
FH-23821-000	Midrange	Single	5.09	2.8	2.59	125	100	No	Preferred
FH-26308-000	Midrange	Single	5.09	2.8	2.59	241	100	No	Preferred
FH-26553-000	Midrange	Single	5.09	2.8	2.59	60	100	No	Preferred
FC-23265-000	Midrange	Single	5.17	3.54	3	395	100	No	Active
FC-26170-000	Midrange	Single	5.17	3.54	3	540	104	No	Active
FC-26171-000	Midrange	Single	5.17	3.54	3	135	104	No	Active
FC-26184-000	Midrange	Single	5.17	3.54	3	354	104	No	Active
FC-26314-000	Midrange	Single	5.17	3.54	3	120	101	No	Active
FC-26465-000	Midrange	Single	5.17	3.54	3	42	104	No	Active
FC-26654-000	Woofer - Midrange	Single	5.17	3.54	3	40	104	No	Active
FC-26887-000	Woofer - Midrange	Single	5.17	3.54	3	354	100	No	Active
FC-30814-000	Woofer - Midrange	Single	5.17	3.54	3	51.8	100	No	Active
FC-31619-000	Woofer - Midrange	Single	5.17	3.54	3	40	100	No	Active
ED-33357-000	Woofer - Midrange	Single	6.3	4.29	2.97	3.5	106.5	Yes	Active
ED-27304-000	Midrange	Single	6.3	4.29	2.97	201	104	No	Active
ED-27305-000	Midrange	Single	6.3	4.29	2.97	48	104	No	Active
ED-27398-000	Woofer - Midrange	Single	6.3	4.29	2.97	196	106.5	No	Active
ED-27488-000	Woofer	Single	6.3	4.29	2.97	196	102.5	No	Active
ED-27926-000	Midrange	Single	6.3	4.29	2.97	64	104	No	Active
ED-29457-000	Midrange	Single	6.3	4.29	2.97	195	104	No	Active
ED-29689-000	Midrange	Single	6.3	4.29	2.97	3.65	104	No	Active
ED-29768-000	Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-30262-000	Woofer	Single	6.3	4.29	2.97	12	106.5	Yes	Active
ED-30761-000	Woofer - Midrange	Single	6.3	4.29	2.97	25.4	102.5	No	Active
ED-27045-000	Midrange	Single	6.3	4.29	2.97	196	104	No	Active
ED-27156-000	Midrange	Single	6.3	4.29	2.97	127	104	No	Active
ED-27230-000	Midrange	Single	6.3	4.29	2.97	54.5	104	No	Active
ED-27235-000	Midrange	Single	6.3	4.29	2.97	650	104	No	Active
ED-27288-000	Midrange	Single	6.3	4.29	2.97	48	104	No	Active
ED-27303-000	Midrange	Single	6.3	4.29	2.97	650	104	No	Active
ED-26784-000	Woofer - Midrange	Single	6.3	4.29	2.97	54.5	104	No	Active
ED-26804-000	Midrange	Single	6.3	4.29	2.97	19.5	104	No	Active
ED-26805-000	Full range	Single	6.3	4.29	2.97	23	102	Yes	Active
ED-26821-000	Woofer - Midrange	Single	6.3	4.29	2.97	3.3	102.5	Yes	Active
ED-23087-000	Woofer - Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-23099-000	Midrange	Single	6.3	4.29	2.97	830	104	No	Active
ED-23145-000	Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-23146-000	Midrange	Single	6.3	4.29	2.97	92	104	No	Active
ED-23147-000	Woofer - Midrange	Single	6.3	4.29	2.97	25	104	No	Active
ED-23162-000	Woofer - Midrange	Single	6.3	4.29	2.97	25	104	No	Active
ED-23619-000	Midrange	Single	6.3	4.29	2.97	3.32	104	No	Active
ED-23801-000	Woofer - Midrange	Single	6.3	4.29	2.97	155	104	No	Active
ED-23814-000	Midrange	Single	6.3	4.29	2.97	23	104	No	Active
ED-26241-000	Woofer - Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-26245-000	Woofer - Midrange	Single	6.3	4.29	2.97	35	104	No	Active
ED-26554-000	Midrange	Single	6.3	4.29	2.97	247	104	No	Active
ED-26565-000	Midrange	Single	6.3	4.29	2.97	54.5	103	No	Active
ED-26598-000	Woofer	Single	6.3	4.29	2.97	196	102.5	No	Active
ED-26718-000	Midrange	Single	6.3	4.29	2.97	35	104	No	Active
DTEC-30388-000	Woofer	Dual	7.87	4.09	5.59	22	113.5	No	Preferred
DTEC-30811-000	Woofer	Dual	8.87	4.57	6.07	25	113.5	No	Preferred
DTEC-31116-000	Woofer	Dual	7.87	4.09	5.59	22	113.5	No	Active
DTEC-32711-000	Woofer	Dual	7.87	4.09	5.59	22	113.5	No	Preferred
DWFK-31785-000	Woofer - Midrange	Dual	5	2.73	3.86	25	101.5	Yes	Active
ED-21744-000	Woofer - Midrange	Single	6.3	4.29	2.97	825	104	No	Active
ED-21912-000	Midrange	Single	6.3	4.29	2.97	196	104	No	Active
ED-21913-000	Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-21914-000	Midrange	Single	6.3	4.29	2.97	830	104	No	Active
ED-21932-000	Midrange	Single	6.3	4.29	2.97	196	104	No	Active
CI-28352-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-28434-000	Woofer - Midrange	Single	9.47	7.18	4.1	24	125	No	Preferred
CI-28487-000	Woofer - Midrange	Single	9.47	7.18	4.1	24	125	No	Preferred
CI-28597-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
DFK-30041-000	Woofer	Dual	5	2.73	3.86	100	99.5	No	Preferred
DFK-30059-000	Woofer	Dual	5	2.73	3.86		99.5		Active
DFK-30739-000	Woofer	Dual	5	2.73	3.86	100	99.7	No	Preferred
DFK-30806-000	Woofer	Dual	5	2.73	3.86	35	101		Active
DTEC-30008-000	Woofer	Dual	7.87	4.09	5.59	23	113.5	No	Preferred
DTEC-30265-000	Woofer	Dual	7.87	4.09	5.59	15	113.5	No	Preferred
BK-28507-000	Woofer - Midrange	Single	7.87	5.59	4.01	10.7	112	No	Preferred
BK-28562-000	Midrange	Single	7.87	5.59	4.01	18.5	109	No	Preferred
BK-29725-000	Full range	Single	7.87	5.59	4.01	100		No	Preferred
BK-30039-000	Midrange	Single	7.87	5.59	4.01	18.5	109	Yes	Preferred
CI-22746-000	Woofer - Midrange	Single	9.47	7.18	4.1	51	125	No	Preferred
CI-22748-000	Woofer - Midrange	Single	9.47	7.18	4.1	75	125	No	Preferred
CI-22762-000	Woofer - Midrange	Single	9.47	7.18	4.1	51	125	No	Preferred
CI-22764-000	Woofer - Midrange	Single	9.47	7.18	4.1	75	125	No	Preferred
CI-22955-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-22960-000	Woofer - Midrange	Single	9.47	7.18	4.1	100	125	No	Preferred
CI-23818-000	Woofer - Midrange	Single	9.47	7.18	4.1	51	125	No	Preferred
CI-26890-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-28204-000	Woofer - Midrange	Single	9.47	7.18	4.1	100	125	No	Preferred
BK-21600-000	Midrange	Single	7.87	5.59	4.01	100	118	No	Preferred
BK-21604-000	Midrange	Single	7.87	5.59	4.01	895	118	No	Preferred
BK-21606-000	Midrange	Single	7.87	5.59	4.01	250	118	No	Preferred
BK-21610-000	Woofer - Midrange	Single	7.87	5.59	4.01	21	121	No	Preferred
BK-21613-000	Midrange	Single	7.87	5.59	4.01	160	118	No	Preferred
BK-21615-000	Midrange	Single	7.87	5.59	4.01	160	118	No	Preferred
BK-23134-000	Midrange	Single	7.87	5.59	4.01	100	118	No	Preferred
BK-26773-000	Midrange	Single	7.87	5.59	4.01	82	112	No	Preferred
BK-26824-000	Full Range & Woofer	Single	7.87	5.59	4.01	10.7	118	Yes	Preferred
BK-26833-000	Woofer - Midrange	Single	7.87	5.59	4.01	7	110	Yes	Preferred
BK-28385-000	Woofer - Midrange	Single	7.87	5.59	4.01	100	114	No	Preferred

#wtbp-table-68_663113_wrapper table {border-collapse: collapse;} #wtbp-table-68_663113_wrapper th {color: #3b3b3c;font-size: 14px;text-align: center;} #wtbp-table-68_663113_wrapper td {font-size: 12px;} #wtbp-table-68_663113 td {text-align: center;} #wtbp-table-68_663113 .thumbnail img, #wtbp-table-68_663113 .wtbpAddToCartWrapper {margin-left: auto;margin-right: auto;} #wtbp-table-68_663113_wrapper .wtbpFiltersWrapper select {max-width: 90%;} .wtbpModalContent {width: 80%;}

Balanced Armature Receivers

Balanced armature receivers are miniature transducers that convert electrical signals into sound within hearing aids and in-ear monitors. They employ a tiny armature suspended between magnets, delivering precise and efficient audio reproduction. Enhance your acoustic devices with Knowles’ balanced armature receivers. They can be customized for sensitivity, frequency response, and impedance, offering superior sound quality and performance tailored to your specific needs.

Filter: Reset

Image	Name	Frequency response curve	Configuration	Diameter / length [mm]	Width [mm]	Thickness [mm]	DC resistance [Ohm]	Sensitivity @ 1kHz, 100 mV, in coupler [dB SPL]	Vented	Product status

Name	Frequency response curve	Configuration	Diameter / length [mm]	Width [mm]	Thickness [mm]	DC resistance [Ohm]	Sensitivity @ 1kHz, 100 mV, in coupler [dB SPL]	Vented	Product status
WBFK-33649-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-33213-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Active
RAN-33860-000	Tweeter	Single	5.1	2.8	2	14	94	No	Active
RAN-33860-B148	Tweeter	Single	5.1	2.8	2	13	94	No	Active
RAQ-35091-000	Full range	Single	5.32	3.06	2.69	25	105	Yes	Active
RAQ-33985-000	Full range	Single	5.32	3.06	2.69	25	104.5	No	Active
RAQ-33862-000	Full range	Single	5.32	3.06	2.69	25	106	No	Active
RDI-33216-000	Woofer	Dual	7.87	4.09	5.23	8.8	120	Yes	Active
RDI-34727-000	Woofer - Midrange	Dual	7.87	4.09	5.23	8.69	120	Yes	Active
RDU-35000-000	Tweeter	Dual	5.1	4.1	2.8	7.2	81	No	Preferred
RLI-35178-000	Woofer - Dual diaphgram	Dual diaphgram	7.87	4.09	3.56	28	120	Yes	Preferred
RLQ-34240-000	Woofer - Midrange Dual diaphgram	Dual diaphgram	5.3	3.1	3.3	22.5	111	Yes	Preferred
RQU-35066-000	Tweeter	Quad	5.8	5.11	4.14	12	88.5	No	Preferred
RQU-35104-000	Tweeter	Quad	5.8	5.11	4.14	3.1	88	No	Preferred
RAB-32146-000	Full range	Single	5.15	2.96	2.58				Active
HC-33617-000	Full range	Single	5.16	3.51	3	20	105	No	Active
HODTEC-32410-000	Woofer	Dual	7.87	4.09	5.23	71	112.7	No	Active
HODVTEC-32951-000	Woofer	Dual	7.87	4.09	5.59	8.5	116	Yes	Active
HOTEC-32025-000	Woofer	Single							Active
GR-33534-000			6.1	3.2	4.32				Active
GD30-32663-000			6.1	3.2	2.69				Active
GD-33063-000			5.99	3.12	2.59				Active
GQ-33893-000	Full range	Multiway	6.3	4.29	4.92				Preferred
FK-31818-000	Tweeter	Single	5	2.73	1.93				Active
FK-32224-000	Tweeter	Single	5	2.73	1.93				Active
FK-33399-000	Tweeter	Single	5	2.73	1.93	200	95	No	Active
GD30-31719-000	Woofer - Midrange	Dual	6.1	3.2	2.69	201	100	No	Active
FC-26214-000	Midrange	Single	5.17	3.54	3	1165	104	No	Active
ED-33465-000	Full range	Single	6.3	4.29	2.97	22.4	108.5	No	Active
ED-26876-000	Full range	Single	6.3	4.29	2.97	25	102.5	Yes	Active
DTEC-32256-000	Woofer	Dual	7.87	4.09	5.59				Active
DTEC-33152-000	Woofer-mid	Dual	7.87	5.59	4.09	11	115	No	Active
ED-21950-000	Woofer - Midrange	Single	6.3	4.29	2.97	127	104	No	Active
CI-26697-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-30847-000	Woofer	Single	9.47	7.18	4.1	20	125	No	Active
CI-32139-000	Woofer	Single	9.47	7.18	4.1	20	125.5	No	Preferred
CI-32984-000	Woofer - Midrange	Single	9.47	7.18	4.1	19.7	125	Yes	Preferred
DFK-33765-000	Woofer	Dual	5	2.73	3.86	35	101	No	Active
BK-26877-000	Woofer - Midrange	Single	7.87	5.59	4.01	20	108	Yes	Preferred
RAU-34832-B148	SuperTweeter	Single	5.1	2.8	2	12	79	No	Preferred
GM-34020-000	Full range	Multiway	5.16	2.96	4.51	22	103	No	Preferred
RDI-33438-000	Woofer - Midrange	Dual	7.87	4.09	5.23	8.69	120	Yes	Preferred
GR-31653-000	Woofer - Midrange	Dual	6.1	3.2	4.32	76	103	No	Active
TWFK-31129-000	Midrange - Tweeter	Dual	5	2.73	3.86	25	95	No	Preferred
TWFK-32689-000	Full range	Dual	5	2.73	3.86	25	100	Yes	Preferred
TWFK-33527-000	Midrange - Tweeter	Dual	5	2.73	3.86	25	95	No	Preferred
WBFK-23990-000	Tweeter	Single	5	2.73	1.93	50	91	No	Active
WBFK-30000-000	Tweeter	Single	5	2.73	1.93	100	95	No	Preferred
WBFK-30019-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-30042-000	Tweeter	Single	5	2.73	1.93	100	95	No	Preferred
WBFK-30095-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Active
WBFK-30111-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-31142-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-32258-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
RAB-32066-000	Woofer - Midrange	Single	5.3	3.28	2.73	65	101.5	No	Preferred
RAB-32154-000	Full range	Single	5.15	2.96	2.58	21	101	No	Active
RAB-32167-000	Full range	Single	5.15	2.96	2.58	247	102.5	No	Active
RAB-32168-000	Woofer - Midrange	Single	5.15	2.96	2.58	65	102.5	No	Active
RAB-32257-000	Full range	Single	5.15	2.96	2.58	22	105.5	Yes	Preferred
RAB-32667-000	Full range	Single	5.15	2.96	2.58	154	101	No	Active
SWFK-31736-000	Tweeter	Dual	5	2.73	3.86	6.3	97	No	Preferred
SWFK-32254-000	Tweeter	Dual	5	2.73	3.86	6.3	97	No	Preferred
SWFK-32255-000	Tweeter	Dual	5	2.73	3.86	6.3	96.5	No	Preferred
SWFK-33108-000	Tweeter	Dual	5	2.73	3.86	6.3	94	No	Preferred
TEC-30006-000	Midrange	Single	7.87	4.09	2.79	46	117	No	Active
TEC-30033-000	Midrange	Single	7.87	4.09	2.79	22	117	No	Active
TWFK-23991-000	Full range	Dual	5	2.73	3.86	100	95	Yes	Active
TWFK-30017-000	Full range	Dual	5	2.73	3.86	25	95	Yes	Preferred
HC-32729-000	Woofer - Midrange	Single	5.16	3.51	3	20	101	No	Active
HODTEC-31230-000	Woofer - Midrange	Dual	7.87	4.09	5.23	26.5	120	No	Active
HODTEC-31268-000	Woofer	Dual	7.87	4.09	5.23	71	113	No	Active
HODTEC-31323-000	Woofer	Dual	7.87	4.09	5.23	26.5	120	No	Active
HODTEC-31515-000	Woofer	Dual	7.87	4.09	5.23	27.2	113	No	Active
HODTEC-32024-000	Woofer - Midrange	Dual	7.87	4.09	5.23	15.2	120	No	Active
HODVTEC-31516-000	Woofer	Dual	7.87	4.09	5.59	102	120	Yes	Preferred
HODVTEC-31618-000	Woofer	Dual	7.87	4.09	5.59	8.6	122	Yes	Preferred
RAB-31761-000	Woofer - Midrange	Single	5.15	2.96	2.58	178	101	No	Active
RAB-32016-000	Full range	Single	5.15	2.96	2.58	116	101.5	No	Active
RAB-32033-000	Full range	Single	5.15	2.96	2.58	22	106	Yes	Preferred
RAB-32057-000	Woofer - Midrange	Single	5.15	2.96	2.58	65	101.5	No	Preferred
RAB-32063-000	Full range	Single	5.15	2.96	2.58	22	103.5	No	Preferred
HC-26766-000	Woofer - Midrange	Single	5.16	3.51	3	120	101	No	Active
GR-31459-000	Woofer - Midrange	Dual	6.1	3.2	4.32	40.9	113	No	Active
GR-31502-000	Woofer - Midrange	Dual	6.1	3.2	4.32	76	103	No	Active
GR-31570-000	Woofer - Midrange	Dual	6.1	3.2	4.32	40.9	103	No	Active
GR-31711-000	Woofer - Midrange	Dual	6.1	3.2	4.32	29	103	No	Active
GR-31767-000	Woofer - Midrange	Dual	6.1	3.2	4.32	76	103	No	Active
GU-32829-000	Full range	Multiway	7.87	5.59	5.94	16	113	Yes	Preferred
GV-32830-000	Full range	Multiway	7.87	5.59	6.78	35	113	Yes	Preferred
HC-23724-000	Woofer - Midrange	Single	5.16	3.51	3	63	101	No	Active
HC-23763-000	Woofer - Midrange	Single	5.16	3.51	3	11.5	101	No	Active
HC-23769-000	Woofer - Midrange	Single	5.16	3.51	3	120	101	No	Active
FK-30817-000	Woofer - Midrange	Single	5	2.73	1.93	50	95	No	Preferred
FK-30861-000	Woofer - Midrange	Single	5	2.73	1.93	360	95	No	Active
FK-31059-000	Midrange	Single	5	2.73	1.93	360	95	No	Active
FK-32628-000	Woofer - Midrange	Single	5	2.73	1.93	25	100.5	Yes	Active
GD30-31488-000	Woofer - Midrange	Dual	6.1	3.2	2.69	201	100	No	Active
GD30-31527-000	Woofer - Midrange	Dual	6.1	3.2	2.69	105	100	No	Preferred
GD30-31593-000	Woofer - Midrange	Dual	6.1	3.2	2.69	165	100	No	Active
GD-31133-000	Woofer - Midrange	Dual	5.99	3.12	2.59	78.9	100	No	Preferred
GD-31223-000	Woofer - Midrange	Dual	5.99	3.12	2.59	105	100	No	Preferred
GD-31269-000	Woofer - Midrange	Dual	7.3	3.61	3.1	105	100	No	Preferred
GD-31288-000	Woofer - Midrange	Dual	5.99	3.12	2.59	201	100	No	Preferred
GD-31440-000	Woofer - Midrange	Dual	5.99	3.12	2.59	165	100	No	Preferred
GD-31475-000	Woofer - Midrange	Dual	5.99	3.12	2.59	33.5	100	No	Active
GK-31732-000	Full range	Multiway	9.46	7.18	6.81	24.1	113	No	Preferred
FH-26719-000	Midrange	Single	5.09	2.8	2.59	52	100	No	Preferred
FH-26745-000	Woofer - Midrange	Single	5.09	2.8	2.59	60	96	No	Preferred
FK-23451-000	Midrange	Single	5	2.73	1.93	360	95.5	No	Preferred
FK-26260-000	Woofer - Midrange	Single	5	2.73	1.93	135	95.5	No	Preferred
FK-26433-000	Midrange	Single	5	2.73	1.93	580	93.5	No	Active
FK-26768-000	Midrange	Single	5	2.73	1.93	580	95	No	Preferred
FK-26777-000	Midrange	Single	5	2.73	1.93	135	96	No	Preferred
FK-26816-000	Woofer - Midrange	Single	5	2.73	1.93	57	95	No	Active
FK-26888-000	Woofer - Midrange	Single	5	2.73	1.93	580	93	No	Active
FK-26889-000	Woofer - Midrange	Single	5	2.73	1.93	580	93	No	Preferred
FK-30030-000	Woofer - Midrange	Single	5	2.73	1.93	360	95	Yes	Active
FH-23371-000	Midrange	Single	5.09	2.8	2.59	60	100	No	Preferred
FH-23373-000	Midrange	Single	5.09	2.8	2.59	125	100	No	Preferred
FH-23375-000	Midrange	Single	5.09	2.8	2.59	240	100	No	Preferred
FH-23377-000	Midrange	Single	5.09	2.8	2.59	515	100	No	Preferred
FH-23469-000	Midrange	Single	5.09	2.8	2.59	245	99.5	No	Preferred
FH-23605-000	Midrange	Single	5.09	2.8	2.59	240	100	No	Preferred
FH-23821-000	Midrange	Single	5.09	2.8	2.59	125	100	No	Preferred
FH-26308-000	Midrange	Single	5.09	2.8	2.59	241	100	No	Preferred
FH-26553-000	Midrange	Single	5.09	2.8	2.59	60	100	No	Preferred
FC-23265-000	Midrange	Single	5.17	3.54	3	395	100	No	Active
FC-26170-000	Midrange	Single	5.17	3.54	3	540	104	No	Active
FC-26171-000	Midrange	Single	5.17	3.54	3	135	104	No	Active
FC-26184-000	Midrange	Single	5.17	3.54	3	354	104	No	Active
FC-26314-000	Midrange	Single	5.17	3.54	3	120	101	No	Active
FC-26465-000	Midrange	Single	5.17	3.54	3	42	104	No	Active
FC-26654-000	Woofer - Midrange	Single	5.17	3.54	3	40	104	No	Active
FC-26887-000	Woofer - Midrange	Single	5.17	3.54	3	354	100	No	Active
FC-30814-000	Woofer - Midrange	Single	5.17	3.54	3	51.8	100	No	Active
FC-31619-000	Woofer - Midrange	Single	5.17	3.54	3	40	100	No	Active
ED-33357-000	Woofer - Midrange	Single	6.3	4.29	2.97	3.5	106.5	Yes	Active
ED-27304-000	Midrange	Single	6.3	4.29	2.97	201	104	No	Active
ED-27305-000	Midrange	Single	6.3	4.29	2.97	48	104	No	Active
ED-27398-000	Woofer - Midrange	Single	6.3	4.29	2.97	196	106.5	No	Active
ED-27488-000	Woofer	Single	6.3	4.29	2.97	196	102.5	No	Active
ED-27926-000	Midrange	Single	6.3	4.29	2.97	64	104	No	Active
ED-29457-000	Midrange	Single	6.3	4.29	2.97	195	104	No	Active
ED-29689-000	Midrange	Single	6.3	4.29	2.97	3.65	104	No	Active
ED-29768-000	Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-30262-000	Woofer	Single	6.3	4.29	2.97	12	106.5	Yes	Active
ED-30761-000	Woofer - Midrange	Single	6.3	4.29	2.97	25.4	102.5	No	Active
ED-27045-000	Midrange	Single	6.3	4.29	2.97	196	104	No	Active
ED-27156-000	Midrange	Single	6.3	4.29	2.97	127	104	No	Active
ED-27230-000	Midrange	Single	6.3	4.29	2.97	54.5	104	No	Active
ED-27235-000	Midrange	Single	6.3	4.29	2.97	650	104	No	Active
ED-27288-000	Midrange	Single	6.3	4.29	2.97	48	104	No	Active
ED-27303-000	Midrange	Single	6.3	4.29	2.97	650	104	No	Active
ED-26784-000	Woofer - Midrange	Single	6.3	4.29	2.97	54.5	104	No	Active
ED-26804-000	Midrange	Single	6.3	4.29	2.97	19.5	104	No	Active
ED-26805-000	Full range	Single	6.3	4.29	2.97	23	102	Yes	Active
ED-26821-000	Woofer - Midrange	Single	6.3	4.29	2.97	3.3	102.5	Yes	Active
ED-23087-000	Woofer - Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-23099-000	Midrange	Single	6.3	4.29	2.97	830	104	No	Active
ED-23145-000	Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-23146-000	Midrange	Single	6.3	4.29	2.97	92	104	No	Active
ED-23147-000	Woofer - Midrange	Single	6.3	4.29	2.97	25	104	No	Active
ED-23162-000	Woofer - Midrange	Single	6.3	4.29	2.97	25	104	No	Active
ED-23619-000	Midrange	Single	6.3	4.29	2.97	3.32	104	No	Active
ED-23801-000	Woofer - Midrange	Single	6.3	4.29	2.97	155	104	No	Active
ED-23814-000	Midrange	Single	6.3	4.29	2.97	23	104	No	Active
ED-26241-000	Woofer - Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-26245-000	Woofer - Midrange	Single	6.3	4.29	2.97	35	104	No	Active
ED-26554-000	Midrange	Single	6.3	4.29	2.97	247	104	No	Active
ED-26565-000	Midrange	Single	6.3	4.29	2.97	54.5	103	No	Active
ED-26598-000	Woofer	Single	6.3	4.29	2.97	196	102.5	No	Active
ED-26718-000	Midrange	Single	6.3	4.29	2.97	35	104	No	Active
DTEC-30388-000	Woofer	Dual	7.87	4.09	5.59	22	113.5	No	Preferred
DTEC-30811-000	Woofer	Dual	8.87	4.57	6.07	25	113.5	No	Preferred
DTEC-31116-000	Woofer	Dual	7.87	4.09	5.59	22	113.5	No	Active
DTEC-32711-000	Woofer	Dual	7.87	4.09	5.59	22	113.5	No	Preferred
DWFK-31785-000	Woofer - Midrange	Dual	5	2.73	3.86	25	101.5	Yes	Active
ED-21744-000	Woofer - Midrange	Single	6.3	4.29	2.97	825	104	No	Active
ED-21912-000	Midrange	Single	6.3	4.29	2.97	196	104	No	Active
ED-21913-000	Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-21914-000	Midrange	Single	6.3	4.29	2.97	830	104	No	Active
ED-21932-000	Midrange	Single	6.3	4.29	2.97	196	104	No	Active
CI-28352-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-28434-000	Woofer - Midrange	Single	9.47	7.18	4.1	24	125	No	Preferred
CI-28487-000	Woofer - Midrange	Single	9.47	7.18	4.1	24	125	No	Preferred
CI-28597-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
DFK-30041-000	Woofer	Dual	5	2.73	3.86	100	99.5	No	Preferred
DFK-30059-000	Woofer	Dual	5	2.73	3.86		99.5		Active
DFK-30739-000	Woofer	Dual	5	2.73	3.86	100	99.7	No	Preferred
DFK-30806-000	Woofer	Dual	5	2.73	3.86	35	101		Active
DTEC-30008-000	Woofer	Dual	7.87	4.09	5.59	23	113.5	No	Preferred
DTEC-30265-000	Woofer	Dual	7.87	4.09	5.59	15	113.5	No	Preferred
BK-28507-000	Woofer - Midrange	Single	7.87	5.59	4.01	10.7	112	No	Preferred
BK-28562-000	Midrange	Single	7.87	5.59	4.01	18.5	109	No	Preferred
BK-29725-000	Full range	Single	7.87	5.59	4.01	100		No	Preferred
BK-30039-000	Midrange	Single	7.87	5.59	4.01	18.5	109	Yes	Preferred
CI-22746-000	Woofer - Midrange	Single	9.47	7.18	4.1	51	125	No	Preferred
CI-22748-000	Woofer - Midrange	Single	9.47	7.18	4.1	75	125	No	Preferred
CI-22762-000	Woofer - Midrange	Single	9.47	7.18	4.1	51	125	No	Preferred
CI-22764-000	Woofer - Midrange	Single	9.47	7.18	4.1	75	125	No	Preferred
CI-22955-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-22960-000	Woofer - Midrange	Single	9.47	7.18	4.1	100	125	No	Preferred
CI-23818-000	Woofer - Midrange	Single	9.47	7.18	4.1	51	125	No	Preferred
CI-26890-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-28204-000	Woofer - Midrange	Single	9.47	7.18	4.1	100	125	No	Preferred
BK-21600-000	Midrange	Single	7.87	5.59	4.01	100	118	No	Preferred
BK-21604-000	Midrange	Single	7.87	5.59	4.01	895	118	No	Preferred
BK-21606-000	Midrange	Single	7.87	5.59	4.01	250	118	No	Preferred
BK-21610-000	Woofer - Midrange	Single	7.87	5.59	4.01	21	121	No	Preferred
BK-21613-000	Midrange	Single	7.87	5.59	4.01	160	118	No	Preferred
BK-21615-000	Midrange	Single	7.87	5.59	4.01	160	118	No	Preferred
BK-23134-000	Midrange	Single	7.87	5.59	4.01	100	118	No	Preferred
BK-26773-000	Midrange	Single	7.87	5.59	4.01	82	112	No	Preferred
BK-26824-000	Full Range & Woofer	Single	7.87	5.59	4.01	10.7	118	Yes	Preferred
BK-26833-000	Woofer - Midrange	Single	7.87	5.59	4.01	7	110	Yes	Preferred
BK-28385-000	Woofer - Midrange	Single	7.87	5.59	4.01	100	114	No	Preferred

#wtbp-table-68_869245_wrapper table {border-collapse: collapse;} #wtbp-table-68_869245_wrapper th {color: #3b3b3c;font-size: 14px;text-align: center;} #wtbp-table-68_869245_wrapper td {font-size: 12px;} #wtbp-table-68_869245 td {text-align: center;} #wtbp-table-68_869245 .thumbnail img, #wtbp-table-68_869245 .wtbpAddToCartWrapper {margin-left: auto;margin-right: auto;} #wtbp-table-68_869245_wrapper .wtbpFiltersWrapper select {max-width: 90%;} .wtbpModalContent {width: 80%;}

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

25 July 2024

Originally inspired by telegraph and telecom domains, the audio industry has seen first uses of the audio equalization with…

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

25 July 2024

Originally inspired by telegraph and telecom domains, the audio industry has seen first uses of the audio equalization with…

Balanced Armature Receivers

Balanced armature receivers are miniature transducers that convert electrical signals into sound within hearing aids and in-ear monitors. They employ a tiny armature suspended between magnets, delivering precise and efficient audio reproduction. Enhance your acoustic devices with Knowles’ balanced armature receivers. They can be customized for sensitivity, frequency response, and impedance, offering superior sound quality and performance tailored to your specific needs.

Filter: Reset

Image	Name	Frequency response curve	Configuration	Diameter / length [mm]	Width [mm]	Thickness [mm]	DC resistance [Ohm]	Sensitivity @ 1kHz, 100 mV, in coupler [dB SPL]	Vented	Product status

Name	Frequency response curve	Configuration	Diameter / length [mm]	Width [mm]	Thickness [mm]	DC resistance [Ohm]	Sensitivity @ 1kHz, 100 mV, in coupler [dB SPL]	Vented	Product status
WBFK-33649-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-33213-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Active
RAN-33860-000	Tweeter	Single	5.1	2.8	2	14	94	No	Active
RAN-33860-B148	Tweeter	Single	5.1	2.8	2	13	94	No	Active
RAQ-35091-000	Full range	Single	5.32	3.06	2.69	25	105	Yes	Active
RAQ-33985-000	Full range	Single	5.32	3.06	2.69	25	104.5	No	Active
RAQ-33862-000	Full range	Single	5.32	3.06	2.69	25	106	No	Active
RDI-33216-000	Woofer	Dual	7.87	4.09	5.23	8.8	120	Yes	Active
RDI-34727-000	Woofer - Midrange	Dual	7.87	4.09	5.23	8.69	120	Yes	Active
RDU-35000-000	Tweeter	Dual	5.1	4.1	2.8	7.2	81	No	Preferred
RLI-35178-000	Woofer - Dual diaphgram	Dual diaphgram	7.87	4.09	3.56	28	120	Yes	Preferred
RLQ-34240-000	Woofer - Midrange Dual diaphgram	Dual diaphgram	5.3	3.1	3.3	22.5	111	Yes	Preferred
RQU-35066-000	Tweeter	Quad	5.8	5.11	4.14	12	88.5	No	Preferred
RQU-35104-000	Tweeter	Quad	5.8	5.11	4.14	3.1	88	No	Preferred
RAB-32146-000	Full range	Single	5.15	2.96	2.58				Active
HC-33617-000	Full range	Single	5.16	3.51	3	20	105	No	Active
HODTEC-32410-000	Woofer	Dual	7.87	4.09	5.23	71	112.7	No	Active
HODVTEC-32951-000	Woofer	Dual	7.87	4.09	5.59	8.5	116	Yes	Active
HOTEC-32025-000	Woofer	Single							Active
GR-33534-000			6.1	3.2	4.32				Active
GD30-32663-000			6.1	3.2	2.69				Active
GD-33063-000			5.99	3.12	2.59				Active
GQ-33893-000	Full range	Multiway	6.3	4.29	4.92				Preferred
FK-31818-000	Tweeter	Single	5	2.73	1.93				Active
FK-32224-000	Tweeter	Single	5	2.73	1.93				Active
FK-33399-000	Tweeter	Single	5	2.73	1.93	200	95	No	Active
GD30-31719-000	Woofer - Midrange	Dual	6.1	3.2	2.69	201	100	No	Active
FC-26214-000	Midrange	Single	5.17	3.54	3	1165	104	No	Active
ED-33465-000	Full range	Single	6.3	4.29	2.97	22.4	108.5	No	Active
ED-26876-000	Full range	Single	6.3	4.29	2.97	25	102.5	Yes	Active
DTEC-32256-000	Woofer	Dual	7.87	4.09	5.59				Active
DTEC-33152-000	Woofer-mid	Dual	7.87	5.59	4.09	11	115	No	Active
ED-21950-000	Woofer - Midrange	Single	6.3	4.29	2.97	127	104	No	Active
CI-26697-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-30847-000	Woofer	Single	9.47	7.18	4.1	20	125	No	Active
CI-32139-000	Woofer	Single	9.47	7.18	4.1	20	125.5	No	Preferred
CI-32984-000	Woofer - Midrange	Single	9.47	7.18	4.1	19.7	125	Yes	Preferred
DFK-33765-000	Woofer	Dual	5	2.73	3.86	35	101	No	Active
BK-26877-000	Woofer - Midrange	Single	7.87	5.59	4.01	20	108	Yes	Preferred
RAU-34832-B148	SuperTweeter	Single	5.1	2.8	2	12	79	No	Preferred
GM-34020-000	Full range	Multiway	5.16	2.96	4.51	22	103	No	Preferred
RDI-33438-000	Woofer - Midrange	Dual	7.87	4.09	5.23	8.69	120	Yes	Preferred
GR-31653-000	Woofer - Midrange	Dual	6.1	3.2	4.32	76	103	No	Active
TWFK-31129-000	Midrange - Tweeter	Dual	5	2.73	3.86	25	95	No	Preferred
TWFK-32689-000	Full range	Dual	5	2.73	3.86	25	100	Yes	Preferred
TWFK-33527-000	Midrange - Tweeter	Dual	5	2.73	3.86	25	95	No	Preferred
WBFK-23990-000	Tweeter	Single	5	2.73	1.93	50	91	No	Active
WBFK-30000-000	Tweeter	Single	5	2.73	1.93	100	95	No	Preferred
WBFK-30019-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-30042-000	Tweeter	Single	5	2.73	1.93	100	95	No	Preferred
WBFK-30095-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Active
WBFK-30111-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-31142-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
WBFK-32258-000	Tweeter	Single	5	2.73	1.93	12.5	91	No	Preferred
RAB-32066-000	Woofer - Midrange	Single	5.3	3.28	2.73	65	101.5	No	Preferred
RAB-32154-000	Full range	Single	5.15	2.96	2.58	21	101	No	Active
RAB-32167-000	Full range	Single	5.15	2.96	2.58	247	102.5	No	Active
RAB-32168-000	Woofer - Midrange	Single	5.15	2.96	2.58	65	102.5	No	Active
RAB-32257-000	Full range	Single	5.15	2.96	2.58	22	105.5	Yes	Preferred
RAB-32667-000	Full range	Single	5.15	2.96	2.58	154	101	No	Active
SWFK-31736-000	Tweeter	Dual	5	2.73	3.86	6.3	97	No	Preferred
SWFK-32254-000	Tweeter	Dual	5	2.73	3.86	6.3	97	No	Preferred
SWFK-32255-000	Tweeter	Dual	5	2.73	3.86	6.3	96.5	No	Preferred
SWFK-33108-000	Tweeter	Dual	5	2.73	3.86	6.3	94	No	Preferred
TEC-30006-000	Midrange	Single	7.87	4.09	2.79	46	117	No	Active
TEC-30033-000	Midrange	Single	7.87	4.09	2.79	22	117	No	Active
TWFK-23991-000	Full range	Dual	5	2.73	3.86	100	95	Yes	Active
TWFK-30017-000	Full range	Dual	5	2.73	3.86	25	95	Yes	Preferred
HC-32729-000	Woofer - Midrange	Single	5.16	3.51	3	20	101	No	Active
HODTEC-31230-000	Woofer - Midrange	Dual	7.87	4.09	5.23	26.5	120	No	Active
HODTEC-31268-000	Woofer	Dual	7.87	4.09	5.23	71	113	No	Active
HODTEC-31323-000	Woofer	Dual	7.87	4.09	5.23	26.5	120	No	Active
HODTEC-31515-000	Woofer	Dual	7.87	4.09	5.23	27.2	113	No	Active
HODTEC-32024-000	Woofer - Midrange	Dual	7.87	4.09	5.23	15.2	120	No	Active
HODVTEC-31516-000	Woofer	Dual	7.87	4.09	5.59	102	120	Yes	Preferred
HODVTEC-31618-000	Woofer	Dual	7.87	4.09	5.59	8.6	122	Yes	Preferred
RAB-31761-000	Woofer - Midrange	Single	5.15	2.96	2.58	178	101	No	Active
RAB-32016-000	Full range	Single	5.15	2.96	2.58	116	101.5	No	Active
RAB-32033-000	Full range	Single	5.15	2.96	2.58	22	106	Yes	Preferred
RAB-32057-000	Woofer - Midrange	Single	5.15	2.96	2.58	65	101.5	No	Preferred
RAB-32063-000	Full range	Single	5.15	2.96	2.58	22	103.5	No	Preferred
HC-26766-000	Woofer - Midrange	Single	5.16	3.51	3	120	101	No	Active
GR-31459-000	Woofer - Midrange	Dual	6.1	3.2	4.32	40.9	113	No	Active
GR-31502-000	Woofer - Midrange	Dual	6.1	3.2	4.32	76	103	No	Active
GR-31570-000	Woofer - Midrange	Dual	6.1	3.2	4.32	40.9	103	No	Active
GR-31711-000	Woofer - Midrange	Dual	6.1	3.2	4.32	29	103	No	Active
GR-31767-000	Woofer - Midrange	Dual	6.1	3.2	4.32	76	103	No	Active
GU-32829-000	Full range	Multiway	7.87	5.59	5.94	16	113	Yes	Preferred
GV-32830-000	Full range	Multiway	7.87	5.59	6.78	35	113	Yes	Preferred
HC-23724-000	Woofer - Midrange	Single	5.16	3.51	3	63	101	No	Active
HC-23763-000	Woofer - Midrange	Single	5.16	3.51	3	11.5	101	No	Active
HC-23769-000	Woofer - Midrange	Single	5.16	3.51	3	120	101	No	Active
FK-30817-000	Woofer - Midrange	Single	5	2.73	1.93	50	95	No	Preferred
FK-30861-000	Woofer - Midrange	Single	5	2.73	1.93	360	95	No	Active
FK-31059-000	Midrange	Single	5	2.73	1.93	360	95	No	Active
FK-32628-000	Woofer - Midrange	Single	5	2.73	1.93	25	100.5	Yes	Active
GD30-31488-000	Woofer - Midrange	Dual	6.1	3.2	2.69	201	100	No	Active
GD30-31527-000	Woofer - Midrange	Dual	6.1	3.2	2.69	105	100	No	Preferred
GD30-31593-000	Woofer - Midrange	Dual	6.1	3.2	2.69	165	100	No	Active
GD-31133-000	Woofer - Midrange	Dual	5.99	3.12	2.59	78.9	100	No	Preferred
GD-31223-000	Woofer - Midrange	Dual	5.99	3.12	2.59	105	100	No	Preferred
GD-31269-000	Woofer - Midrange	Dual	7.3	3.61	3.1	105	100	No	Preferred
GD-31288-000	Woofer - Midrange	Dual	5.99	3.12	2.59	201	100	No	Preferred
GD-31440-000	Woofer - Midrange	Dual	5.99	3.12	2.59	165	100	No	Preferred
GD-31475-000	Woofer - Midrange	Dual	5.99	3.12	2.59	33.5	100	No	Active
GK-31732-000	Full range	Multiway	9.46	7.18	6.81	24.1	113	No	Preferred
FH-26719-000	Midrange	Single	5.09	2.8	2.59	52	100	No	Preferred
FH-26745-000	Woofer - Midrange	Single	5.09	2.8	2.59	60	96	No	Preferred
FK-23451-000	Midrange	Single	5	2.73	1.93	360	95.5	No	Preferred
FK-26260-000	Woofer - Midrange	Single	5	2.73	1.93	135	95.5	No	Preferred
FK-26433-000	Midrange	Single	5	2.73	1.93	580	93.5	No	Active
FK-26768-000	Midrange	Single	5	2.73	1.93	580	95	No	Preferred
FK-26777-000	Midrange	Single	5	2.73	1.93	135	96	No	Preferred
FK-26816-000	Woofer - Midrange	Single	5	2.73	1.93	57	95	No	Active
FK-26888-000	Woofer - Midrange	Single	5	2.73	1.93	580	93	No	Active
FK-26889-000	Woofer - Midrange	Single	5	2.73	1.93	580	93	No	Preferred
FK-30030-000	Woofer - Midrange	Single	5	2.73	1.93	360	95	Yes	Active
FH-23371-000	Midrange	Single	5.09	2.8	2.59	60	100	No	Preferred
FH-23373-000	Midrange	Single	5.09	2.8	2.59	125	100	No	Preferred
FH-23375-000	Midrange	Single	5.09	2.8	2.59	240	100	No	Preferred
FH-23377-000	Midrange	Single	5.09	2.8	2.59	515	100	No	Preferred
FH-23469-000	Midrange	Single	5.09	2.8	2.59	245	99.5	No	Preferred
FH-23605-000	Midrange	Single	5.09	2.8	2.59	240	100	No	Preferred
FH-23821-000	Midrange	Single	5.09	2.8	2.59	125	100	No	Preferred
FH-26308-000	Midrange	Single	5.09	2.8	2.59	241	100	No	Preferred
FH-26553-000	Midrange	Single	5.09	2.8	2.59	60	100	No	Preferred
FC-23265-000	Midrange	Single	5.17	3.54	3	395	100	No	Active
FC-26170-000	Midrange	Single	5.17	3.54	3	540	104	No	Active
FC-26171-000	Midrange	Single	5.17	3.54	3	135	104	No	Active
FC-26184-000	Midrange	Single	5.17	3.54	3	354	104	No	Active
FC-26314-000	Midrange	Single	5.17	3.54	3	120	101	No	Active
FC-26465-000	Midrange	Single	5.17	3.54	3	42	104	No	Active
FC-26654-000	Woofer - Midrange	Single	5.17	3.54	3	40	104	No	Active
FC-26887-000	Woofer - Midrange	Single	5.17	3.54	3	354	100	No	Active
FC-30814-000	Woofer - Midrange	Single	5.17	3.54	3	51.8	100	No	Active
FC-31619-000	Woofer - Midrange	Single	5.17	3.54	3	40	100	No	Active
ED-33357-000	Woofer - Midrange	Single	6.3	4.29	2.97	3.5	106.5	Yes	Active
ED-27304-000	Midrange	Single	6.3	4.29	2.97	201	104	No	Active
ED-27305-000	Midrange	Single	6.3	4.29	2.97	48	104	No	Active
ED-27398-000	Woofer - Midrange	Single	6.3	4.29	2.97	196	106.5	No	Active
ED-27488-000	Woofer	Single	6.3	4.29	2.97	196	102.5	No	Active
ED-27926-000	Midrange	Single	6.3	4.29	2.97	64	104	No	Active
ED-29457-000	Midrange	Single	6.3	4.29	2.97	195	104	No	Active
ED-29689-000	Midrange	Single	6.3	4.29	2.97	3.65	104	No	Active
ED-29768-000	Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-30262-000	Woofer	Single	6.3	4.29	2.97	12	106.5	Yes	Active
ED-30761-000	Woofer - Midrange	Single	6.3	4.29	2.97	25.4	102.5	No	Active
ED-27045-000	Midrange	Single	6.3	4.29	2.97	196	104	No	Active
ED-27156-000	Midrange	Single	6.3	4.29	2.97	127	104	No	Active
ED-27230-000	Midrange	Single	6.3	4.29	2.97	54.5	104	No	Active
ED-27235-000	Midrange	Single	6.3	4.29	2.97	650	104	No	Active
ED-27288-000	Midrange	Single	6.3	4.29	2.97	48	104	No	Active
ED-27303-000	Midrange	Single	6.3	4.29	2.97	650	104	No	Active
ED-26784-000	Woofer - Midrange	Single	6.3	4.29	2.97	54.5	104	No	Active
ED-26804-000	Midrange	Single	6.3	4.29	2.97	19.5	104	No	Active
ED-26805-000	Full range	Single	6.3	4.29	2.97	23	102	Yes	Active
ED-26821-000	Woofer - Midrange	Single	6.3	4.29	2.97	3.3	102.5	Yes	Active
ED-23087-000	Woofer - Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-23099-000	Midrange	Single	6.3	4.29	2.97	830	104	No	Active
ED-23145-000	Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-23146-000	Midrange	Single	6.3	4.29	2.97	92	104	No	Active
ED-23147-000	Woofer - Midrange	Single	6.3	4.29	2.97	25	104	No	Active
ED-23162-000	Woofer - Midrange	Single	6.3	4.29	2.97	25	104	No	Active
ED-23619-000	Midrange	Single	6.3	4.29	2.97	3.32	104	No	Active
ED-23801-000	Woofer - Midrange	Single	6.3	4.29	2.97	155	104	No	Active
ED-23814-000	Midrange	Single	6.3	4.29	2.97	23	104	No	Active
ED-26241-000	Woofer - Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-26245-000	Woofer - Midrange	Single	6.3	4.29	2.97	35	104	No	Active
ED-26554-000	Midrange	Single	6.3	4.29	2.97	247	104	No	Active
ED-26565-000	Midrange	Single	6.3	4.29	2.97	54.5	103	No	Active
ED-26598-000	Woofer	Single	6.3	4.29	2.97	196	102.5	No	Active
ED-26718-000	Midrange	Single	6.3	4.29	2.97	35	104	No	Active
DTEC-30388-000	Woofer	Dual	7.87	4.09	5.59	22	113.5	No	Preferred
DTEC-30811-000	Woofer	Dual	8.87	4.57	6.07	25	113.5	No	Preferred
DTEC-31116-000	Woofer	Dual	7.87	4.09	5.59	22	113.5	No	Active
DTEC-32711-000	Woofer	Dual	7.87	4.09	5.59	22	113.5	No	Preferred
DWFK-31785-000	Woofer - Midrange	Dual	5	2.73	3.86	25	101.5	Yes	Active
ED-21744-000	Woofer - Midrange	Single	6.3	4.29	2.97	825	104	No	Active
ED-21912-000	Midrange	Single	6.3	4.29	2.97	196	104	No	Active
ED-21913-000	Midrange	Single	6.3	4.29	2.97	376	104	No	Active
ED-21914-000	Midrange	Single	6.3	4.29	2.97	830	104	No	Active
ED-21932-000	Midrange	Single	6.3	4.29	2.97	196	104	No	Active
CI-28352-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-28434-000	Woofer - Midrange	Single	9.47	7.18	4.1	24	125	No	Preferred
CI-28487-000	Woofer - Midrange	Single	9.47	7.18	4.1	24	125	No	Preferred
CI-28597-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
DFK-30041-000	Woofer	Dual	5	2.73	3.86	100	99.5	No	Preferred
DFK-30059-000	Woofer	Dual	5	2.73	3.86		99.5		Active
DFK-30739-000	Woofer	Dual	5	2.73	3.86	100	99.7	No	Preferred
DFK-30806-000	Woofer	Dual	5	2.73	3.86	35	101		Active
DTEC-30008-000	Woofer	Dual	7.87	4.09	5.59	23	113.5	No	Preferred
DTEC-30265-000	Woofer	Dual	7.87	4.09	5.59	15	113.5	No	Preferred
BK-28507-000	Woofer - Midrange	Single	7.87	5.59	4.01	10.7	112	No	Preferred
BK-28562-000	Midrange	Single	7.87	5.59	4.01	18.5	109	No	Preferred
BK-29725-000	Full range	Single	7.87	5.59	4.01	100		No	Preferred
BK-30039-000	Midrange	Single	7.87	5.59	4.01	18.5	109	Yes	Preferred
CI-22746-000	Woofer - Midrange	Single	9.47	7.18	4.1	51	125	No	Preferred
CI-22748-000	Woofer - Midrange	Single	9.47	7.18	4.1	75	125	No	Preferred
CI-22762-000	Woofer - Midrange	Single	9.47	7.18	4.1	51	125	No	Preferred
CI-22764-000	Woofer - Midrange	Single	9.47	7.18	4.1	75	125	No	Preferred
CI-22955-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-22960-000	Woofer - Midrange	Single	9.47	7.18	4.1	100	125	No	Preferred
CI-23818-000	Woofer - Midrange	Single	9.47	7.18	4.1	51	125	No	Preferred
CI-26890-000	Woofer - Midrange	Single	9.47	7.18	4.1	20	125	No	Preferred
CI-28204-000	Woofer - Midrange	Single	9.47	7.18	4.1	100	125	No	Preferred
BK-21600-000	Midrange	Single	7.87	5.59	4.01	100	118	No	Preferred
BK-21604-000	Midrange	Single	7.87	5.59	4.01	895	118	No	Preferred
BK-21606-000	Midrange	Single	7.87	5.59	4.01	250	118	No	Preferred
BK-21610-000	Woofer - Midrange	Single	7.87	5.59	4.01	21	121	No	Preferred
BK-21613-000	Midrange	Single	7.87	5.59	4.01	160	118	No	Preferred
BK-21615-000	Midrange	Single	7.87	5.59	4.01	160	118	No	Preferred
BK-23134-000	Midrange	Single	7.87	5.59	4.01	100	118	No	Preferred
BK-26773-000	Midrange	Single	7.87	5.59	4.01	82	112	No	Preferred
BK-26824-000	Full Range & Woofer	Single	7.87	5.59	4.01	10.7	118	Yes	Preferred
BK-26833-000	Woofer - Midrange	Single	7.87	5.59	4.01	7	110	Yes	Preferred
BK-28385-000	Woofer - Midrange	Single	7.87	5.59	4.01	100	114	No	Preferred

#wtbp-table-68_886714_wrapper table {border-collapse: collapse;} #wtbp-table-68_886714_wrapper th {color: #3b3b3c;font-size: 14px;text-align: center;} #wtbp-table-68_886714_wrapper td {font-size: 12px;} #wtbp-table-68_886714 td {text-align: center;} #wtbp-table-68_886714 .thumbnail img, #wtbp-table-68_886714 .wtbpAddToCartWrapper {margin-left: auto;margin-right: auto;} #wtbp-table-68_886714_wrapper .wtbpFiltersWrapper select {max-width: 90%;} .wtbpModalContent {width: 80%;}

Acoustic components (1136)

Capacitive, Multifunctional Sensors (133)

Processors (36)

Wireless Systems (4)

z-Non classé (73)

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

Balanced Armature Receivers

Balanced Armature Receivers

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

Balanced Armature Receivers

Solution provider

Navigate

Newsletter
