Dynamic speakers

At Seltech, we provide high-quality speakers designed for exceptional sound performance and reliability. Our speakers are engineered to meet diverse acoustic requirements and can be customized for different devices and systems. Whether you need compact speakers for portable electronics or robust units for industrial applications, our solutions ensure clear and accurate audio reproduction to enhance the user experience.

Name	Dimensions [mm](Ø x t)(l x w x t)	Impedance (Ohm or Ω)	Rated power [W]	Max. power [W]	Sensitivity @ 1kHz, 1W/1m [dB SPL]	Resonance frequency f0 [Hz]	Frequency range [Hz]	Carbon Footprint [Kg CO2 eq.]
CR1511L035YN8WP	15x11x3.5	8	1	1.5	76	1000	500 - 20000	NA
BR1511L035YN8-WP	15x11x3.5	8	1	1.5	72.5	910	450 - 20000	NA
CR1511S033YN8WDA	15x11x3.3	8	0.5	1	74.5	850	360 - 19500	0.026
CR1511L030UN8-2	15x11x3	8	0.8	1	73	900	300 - 20000	0.026
CR1511L030UN8GDA	15x11x3	8	0.8	-	73	600	-	0.026

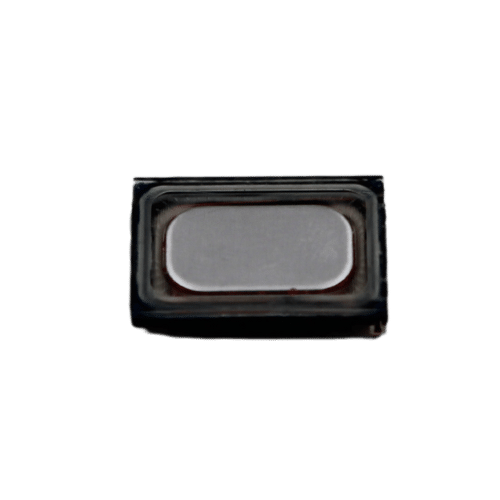

BR1511L030YN6	15x11x3	6	0.7	1	72.5	900	500 - 20000	NA
CR1511L025YN8WP	15x11x2.5	8	0.8	1.2	74	850	300 - 20000	NA

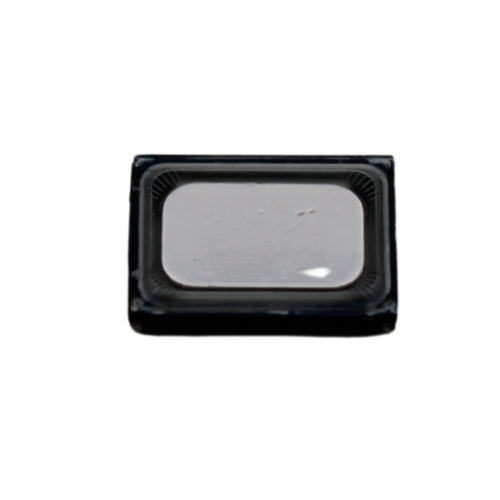

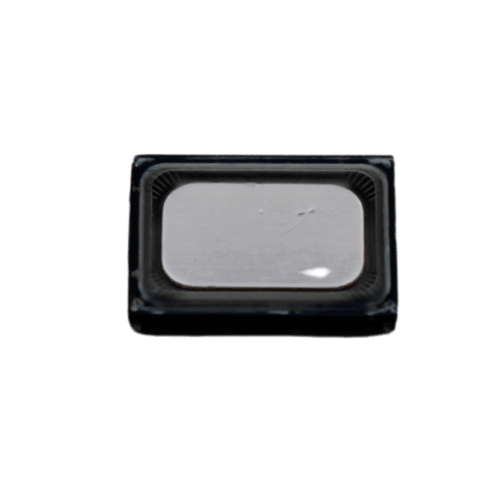

BR1511L025YN8	15x11x2.5	8	0.8	-	73	850	450 - 20000	NA
BR1511L025YN8WP	15x11x2.5	8	0.8	-	73	850	450 - 20000	NA
GR1511S025YN7Z	15x11x2.45	7	1	-	73.5	760	400 - 20000	NA

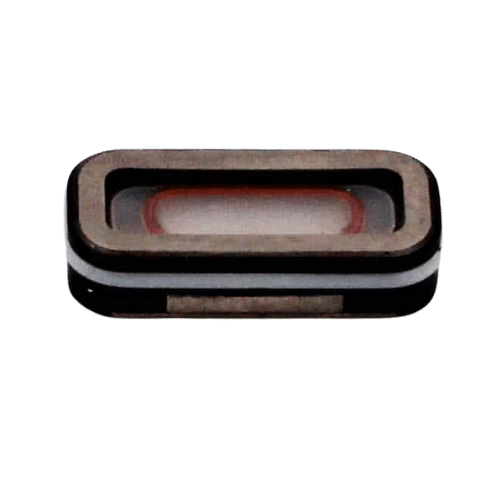

GR1407S030YN8WP	13.6x6.6x3.0	8	0.5	0.7	68	950	550 - 20000	NA
CR1511L035UN8GDARI-4	15x11x4.28	8	0.7	1	68.5	850	300 - 20000	NA
BR1511L035UN6-WPDA	15x11x3.5	6	1	1.2	72.5	900	475 - 20000	0.026

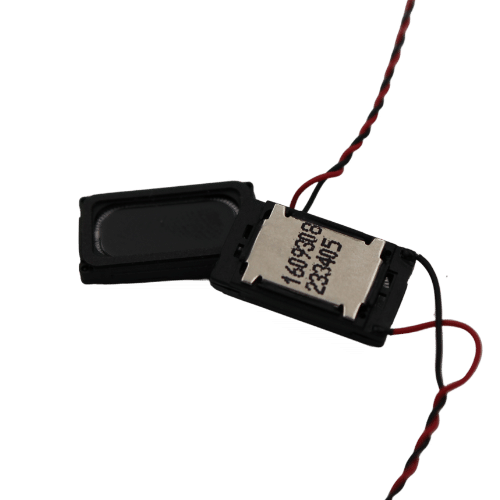

CR1609S030BN8GDAC-4	16x9x3,35	8	0.5	0.8	70	900	325 - 10000	0.028
CR1609S020YN8Z	16x9x2	8	0.8	1	93	900	550 - 20000	NA

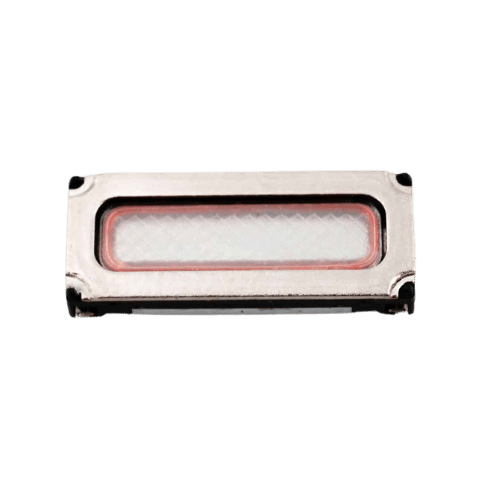

CR1506L025YN8WP	15x6x2.5	8	0.5	0.7	72	950	500 - 20000	NA
CS18S059YO8	18x5.9	8	0.8	1.5	69		550 - 15000	NA

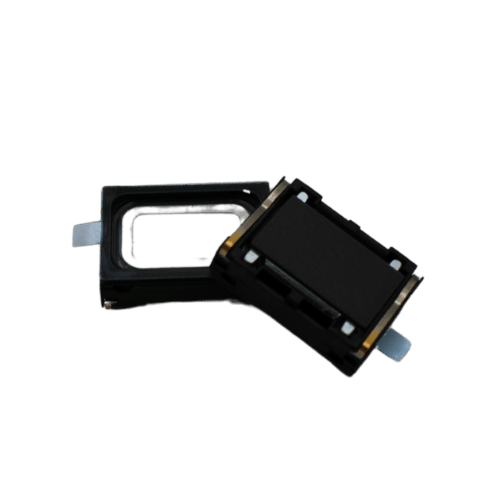

TR1813L042YN8GDAP-2	18x13x5.35	8	0.7	1	72.5	800	370 - 20000	NA

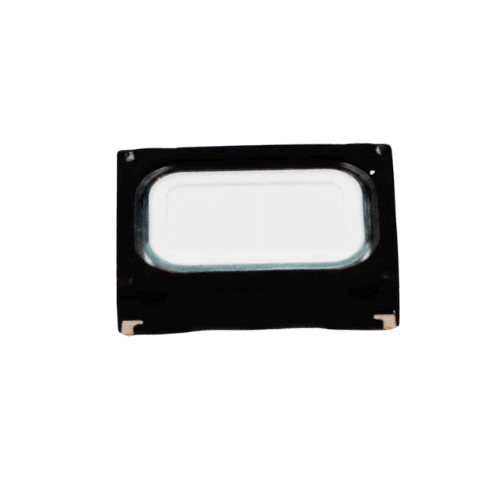

TR1813L042YN8	18x13x4.2	8	0.7	1	72.5	800	370 - 20000	NA
CR1813L025UN8DA	18x13x2.58	8	0.7	1	75.5	800	400 - 13000	0.026

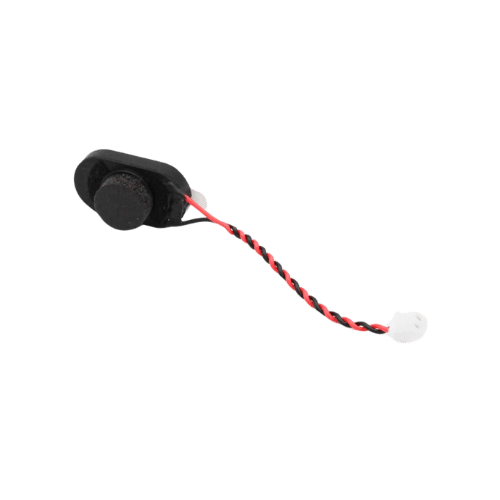

CO1810C037YN8	18x10x7	8	0.5	0.8	75	1300	800 - 17000	NA
GR1712S025YN8	17x12x2.45	8	1	1.5	75	870	500 - 20000	NA
CR1712S023YN8Z	17x12x2.3	8	1	1.5	76.5	850	600 - 20000	NA
LR2008W030YN8	20x8x30	8	0.1		74	260	200 - 20000	NA

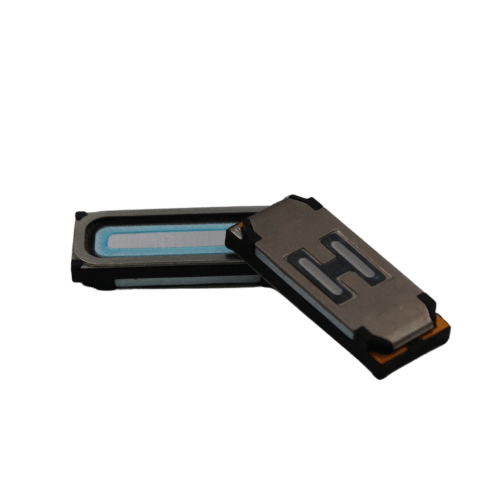

LR2008S030YN8	20x8x3	8	0.045	-	74	260	150 - 20000	NA
CC20C046YN8MP	20x4.6	8	1	2	78	850	500 - 20000	NA
BO3020S057YN4	30x20x6	4	1		85.5	800	650 - 1900	NA
CS29C085ZN8	29.4x29.4x10	8	2	3	75	350	275 - 6500	NA

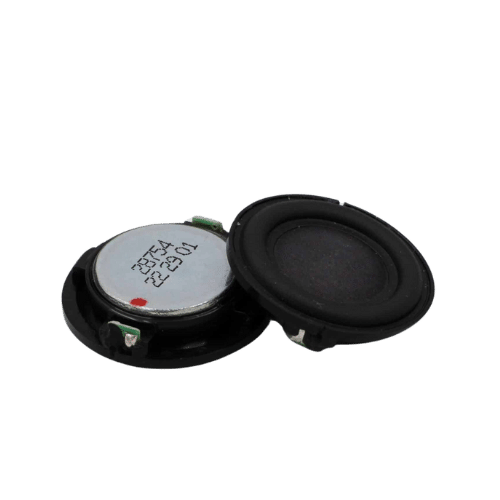

CC28L070AN4	28x7	4	2	3	74	400	200 - 15000	NA

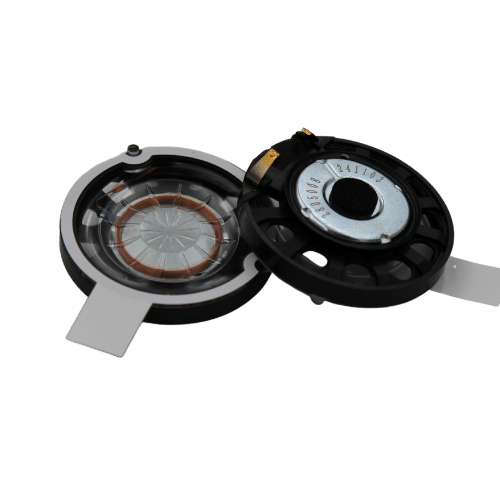

CC28L05YN8WPDAP	28x6.25	8	0.5	1	NA	700	500 - 5750	NA
CC28C05YN8WPDAP	28x6.25	8	0.5	1	NA	700	500 - 5750	NA
WD11903Y8HBI	28x6	8	0.5	1	86	700	450-8000	NA

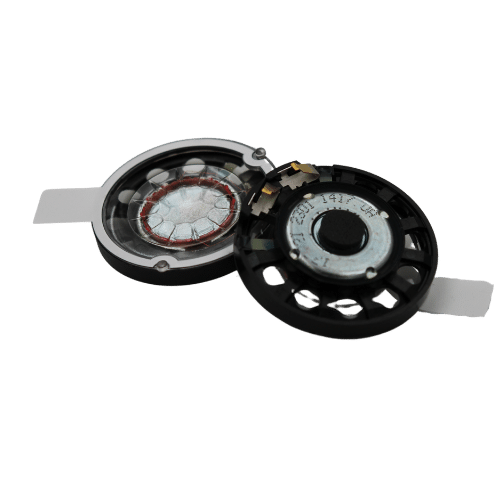

WD11903Y8HI	28x6	8	0.5	1	86	700	450-8000	NA

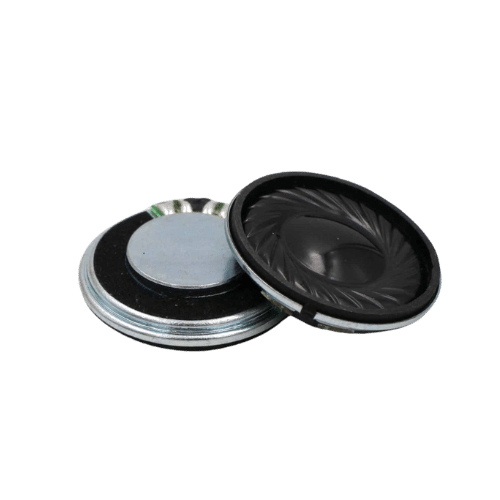

CC28S055BN8G	28x5.5	8	2	3	78	550	310 - 20000	NA
CC28S054BN8G	28x5.4	8	1	2	79	500	350 - 20000	NA
CS28L112AN8	28x28x11.2	8	2	3	72	380	-	NA
CC28C100ZN8	28x10.1	8	2	3	77	350	150 - 20000	NA
CC27V115YN4	27x11.5	4	2	3	77	300	200 - 20000	NA
CC26S046BN8G	26x4.6	8	1	1.2	79	700	-	NA

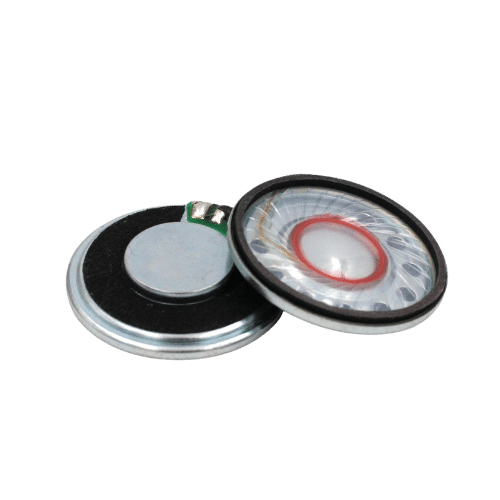

CC26S04BN8G	26x4.6	8	1	1.5	78	600	450 - 20000	NA
CO2516C058YN4WPPM	25x16x5.8	4	1.5	2	80.2	750	450 - 20000	NA
BO2516S048YN8	25x16x4.8	8	1	1.2	79	800	500 - 20000	NA

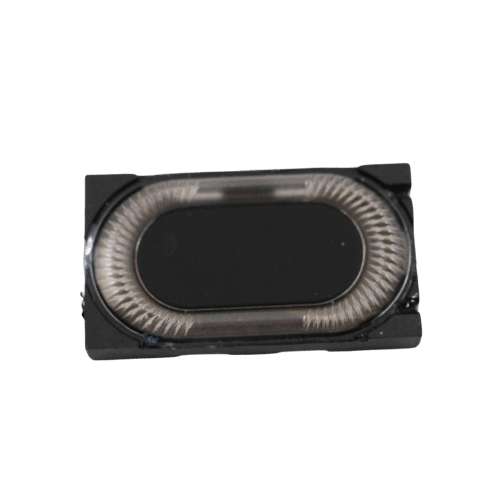

CR2514S060YN4	25x14x6	4	2	2.5	72	650	250-20000	NA

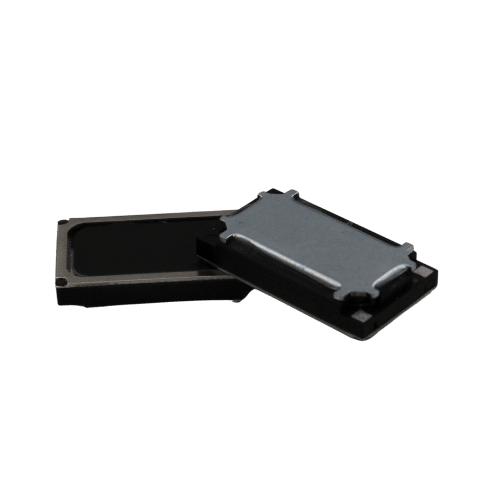

CR2514S045YN4	24x14x4.5	4	2	2.2	81	850	500 - 17500	NA
CC36L163AN4	36x16.3	4	2	3	74	190	100 - 20000	NA
CC36C163DN8	36x16.3	8	3	4	73	190	100 - 20000	NA

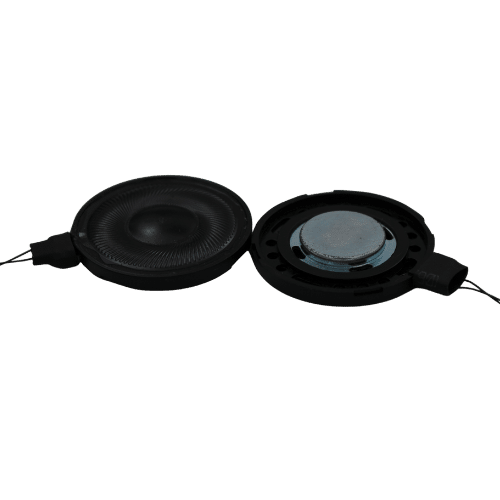

SOD02902Y50LCBT-1	34x4.1	50	0.3	0.5	80	450	200 - 20000	NA
CR3411S040BN8	34x11x4	8	2	2.5	77	800	500 - 20000	NA

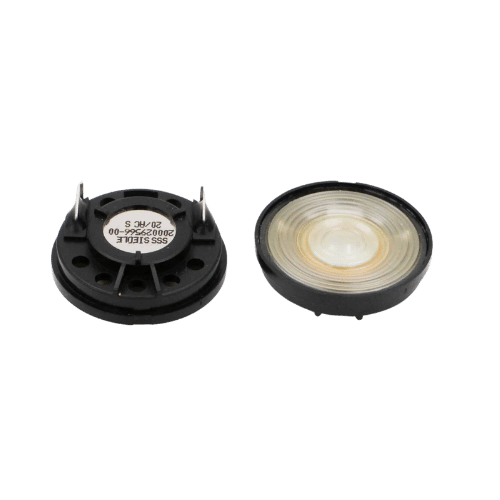

CC35L12YN50	34.5x12.3	50	0.5	1	83	500	330 - 13000	0.105
TC32S20DN4	32x20.8	4	3	4.5	74	210	100 - 20000	NA

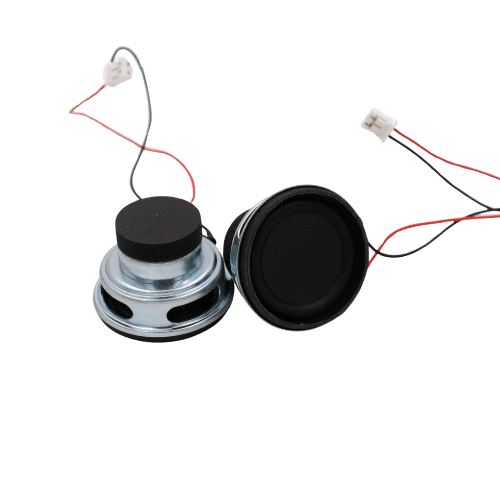

CC31C165AN4P	31x21.5	4	3	4	75	380	200 - 20000	0.120
CC31L165AN4	31x16.5	4	3	4	71	380	200 - 20000	NA

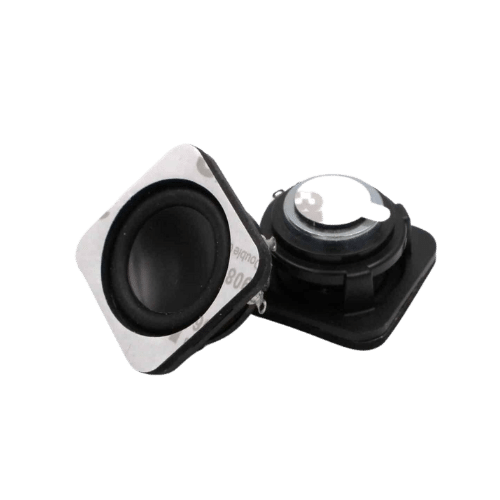

CS32H084YN8G	31.6x31.6x8.35	8	3	5	76	280	200 - 20000	NA

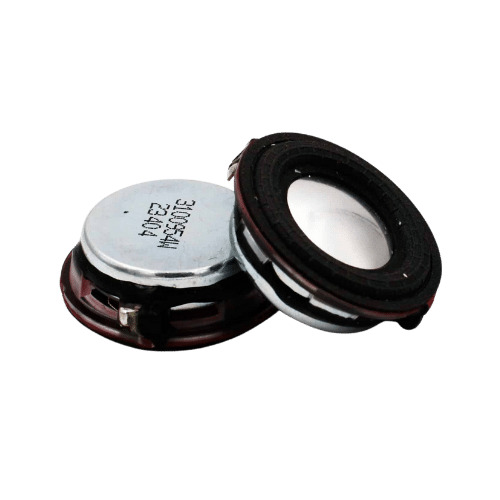

CC31S09UN4	31.2x10.5	4	3.5	5	79	300	200 - 15000	NA
CC31C09UN4	31.2x10.5	4	3.5	5	79	300	200 - 15000	NA

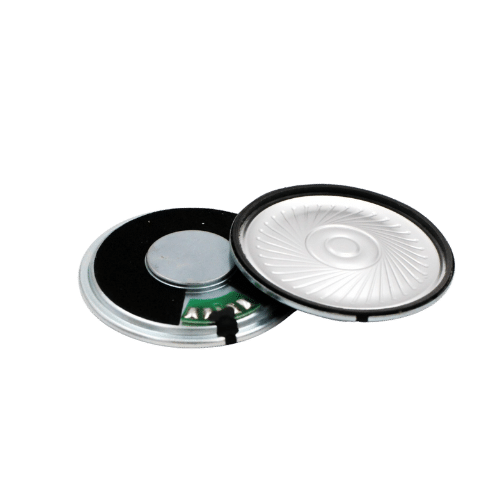

CC30S05BN8	30x5	8	1	2	81	550	400 - 20000	NA

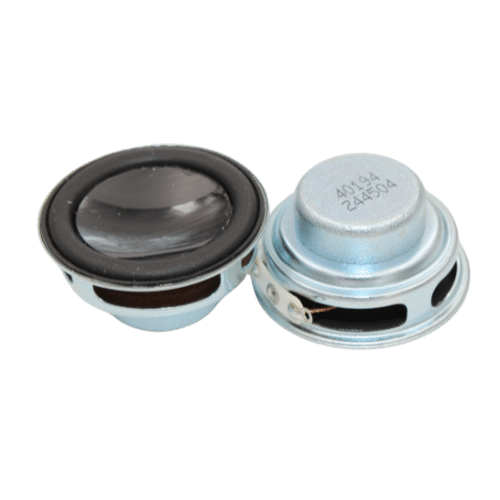

CC40S195DN4	40x19.75	4	3	5	81	160	120 - 20000	NA

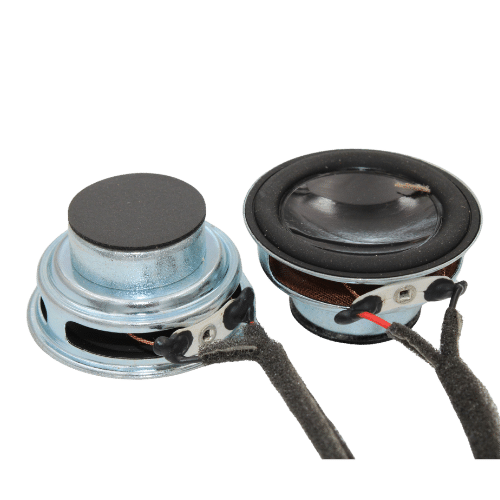

CC40C195DN4P	40x19.5	4	3	5	82	160	125 - 20000	NA
CC40C195DN8P	40x19.5	8	3	5	82	160	125 - 20000	NA

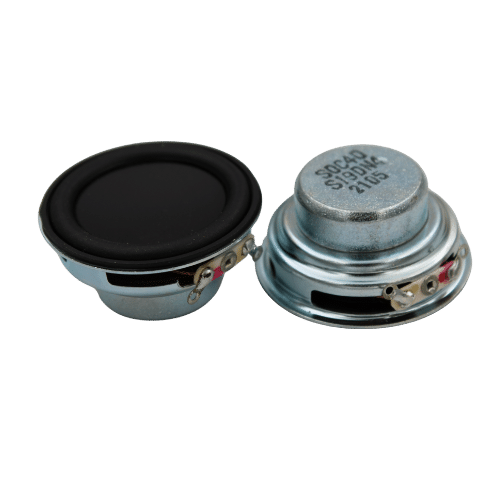

SOC40S19DN4	40x19	4	5	10	76	160	100 - 20000	0.301

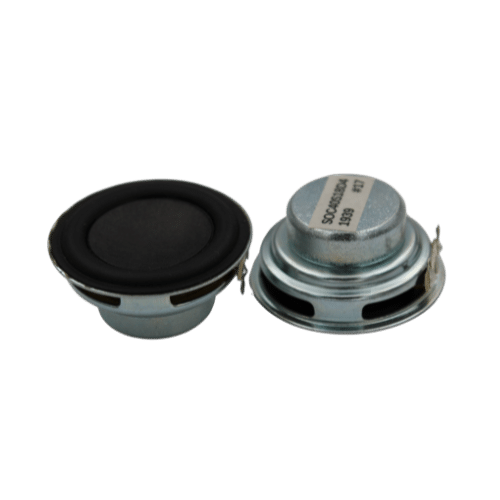

SOC40S18D4	40x18.5	4	2	4	76	170	100 - 20000	NA
SOC40S18D4 BW	40x18.5	4	2	4	75	170	-	NA
SOC40W18DN4	40x18.5	4	2	4	75	170	95 - 20000	NA
CC40W183AN4	40x18.3	4	1	2	79	230	125 - 20000	NA
CC40C182DN4	40x18.2	4	3	4	78	170	100 - 20000	NA

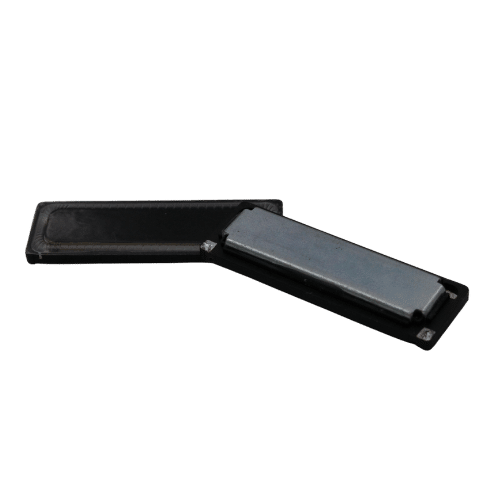

CR4013L040YN8	40x13x4	8	2	2.2	76	550	300 - 20000	NA
TO40S31EN4	40.5x31.5	4	2	3	67	85	-	NA
CC36S066YN4	36x6.6	8	2	3	81	300	150 - 20000	NA

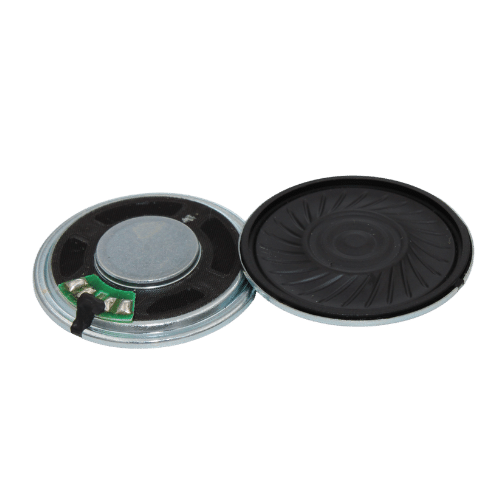

CC36S048BN8	36x4.8	8	1	1.5	80	570	350 - 20000	NA
CC40S050BN32	40x5	32	1	1.5	85	600	400 - 6000	NA
CR4040L20DN4	40x40x20	4	4	5	75	230	150 - 20000	NA
CR4030C071BN4	40x30x7.1	4	2	2.5	75	480	200 - 17500	NA

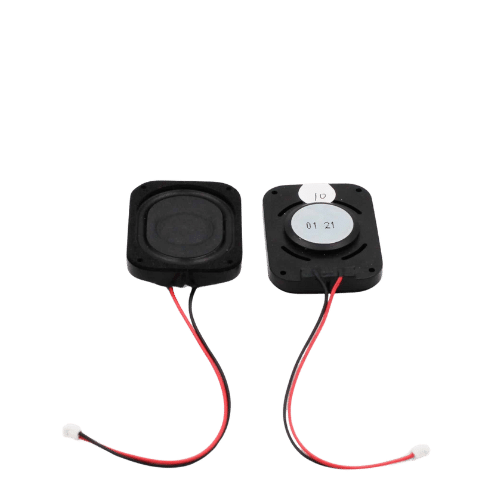

CR4030C071BN4-2	40x30x7.1	4	2	2.5	75	480	200 - 17500	NA
OR4030S11Z8	40x30x11.5	8	2	3	79	450	-	NA
SOR4030S11Z4	40x30x11.5	4	2	3	79	450	280 - 12000	NA

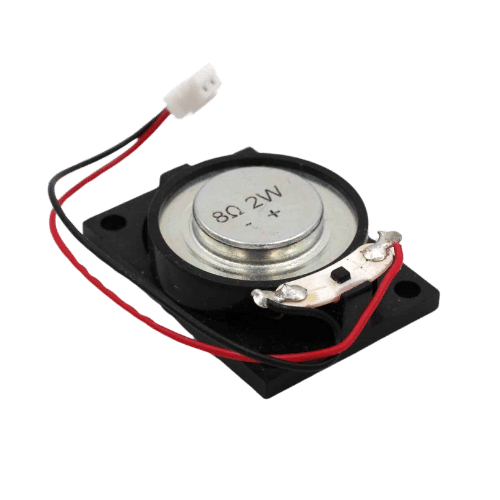

BR4029C123ZN8P	40x28.5x12.3	8	2	4	82	500	250 - 15000	NA
SOC40C22D4-2	40x22.5	4	1	2	78	230	150 - 15000	NA
CC40C217XN4G	40x21.7	4	5	5.5	77	160	100 - 20000	NA
CC40C21XN4	40x21.5	4	5	8	78	150	130 - 20000	NA
CC40L215WN4	40x21.5	4	5	8	78	150	150 - 20000	NA

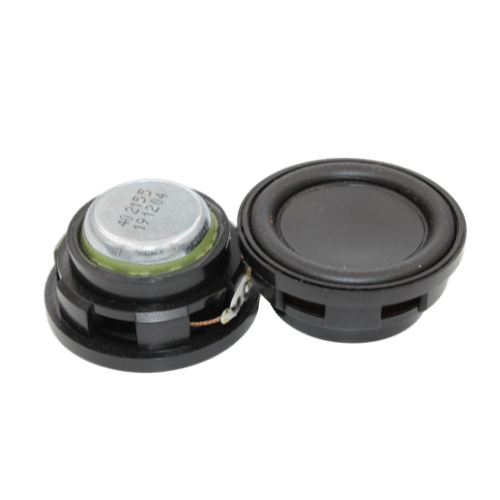

CC40S21XN4	40x21.5	4	5	8	78	150	130 - 20000	NA

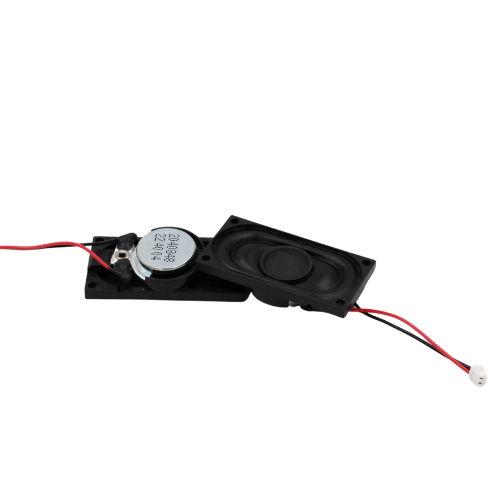

CR4020C084ZN8F	40x20x8.4	8	2	3	82	650	500 - 3000	NA

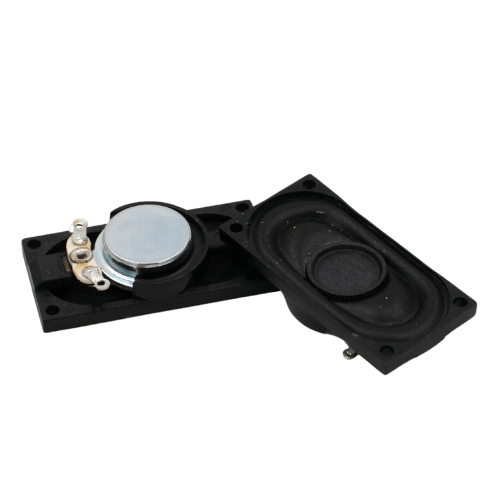

CR4020L084HN16	40x20x8.4	16	1	2	82	600	400 - 2000	NA

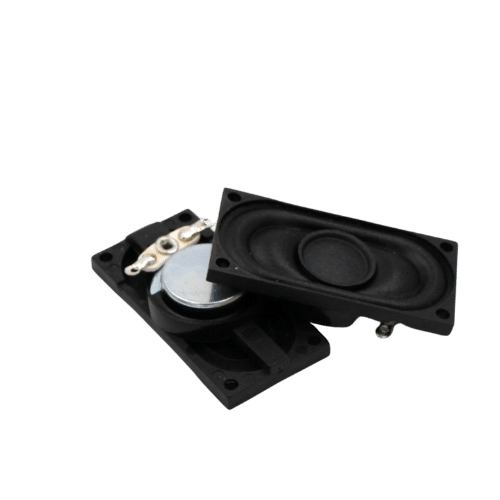

CR4020S08ZN8F	40x20x8.4	8	2	3	80	650	450 - 3500	NA
SOR4020S08Z8	40x20x8	8	1	2	80	700	-	NA
SOD20722X4CV	50x18.2	4	1	2	83	300	-	NA
SOD20621Y50LH	50x17	50	0.3	0.8	83	390	150 - 10000	NA
CC50S120BN8G	50x12	8	2	3	86	750	500 - 4500	NA
CC50S12BN4A	50x11.5	4	2	3	82	550	300 - 10000	NA
CC45S050BN4G	45x5	4	1	1.5	80	580	320 - 6000	NA

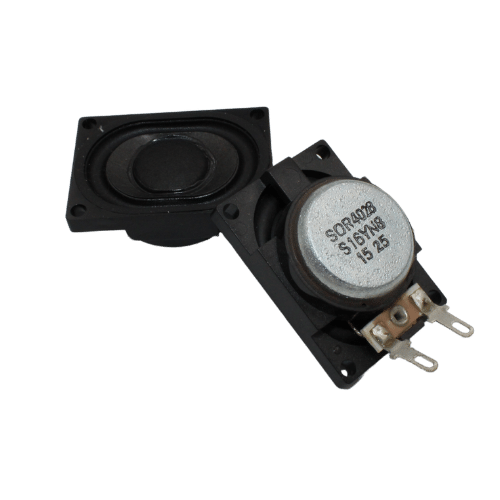

SOR4028S16YN8	45x33x24.5	8	3	5	79	260	150 - 6000	NA
SOR4028S16YN8PR	45x33x24.5	8	3	5	79	260	150 - 6100	NA
CC45H240WN4	45x24	4	5	6	77	130	125 - 13500	NA
CC42C192WN4WPA	41.7x21.1	4	1	4	80.5	140	125 - 15000	NA

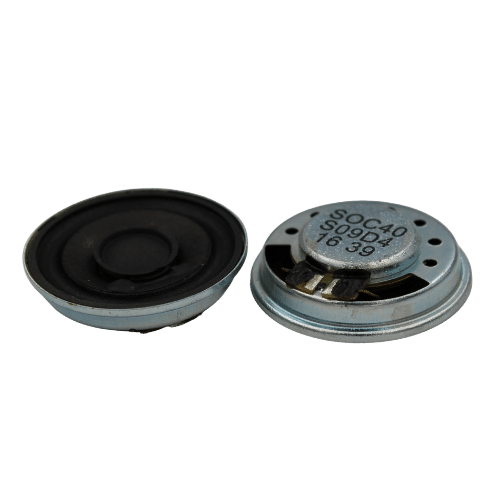

SOC40S09D4	40x9.5	4	2	4	81.5	350	200 - 12000	NA

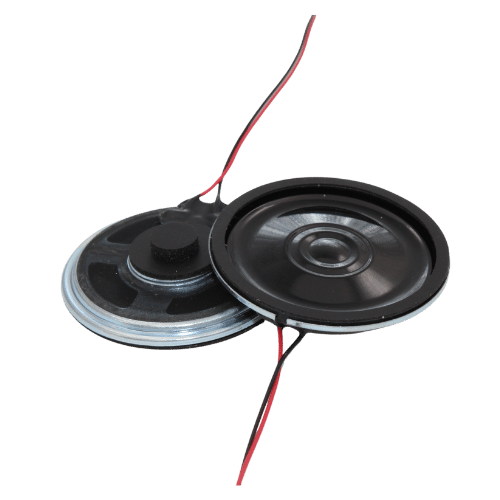

CC40C090BN50GP	40x9.05	50	0.2	0.5	84	550	350 - 6000	NA

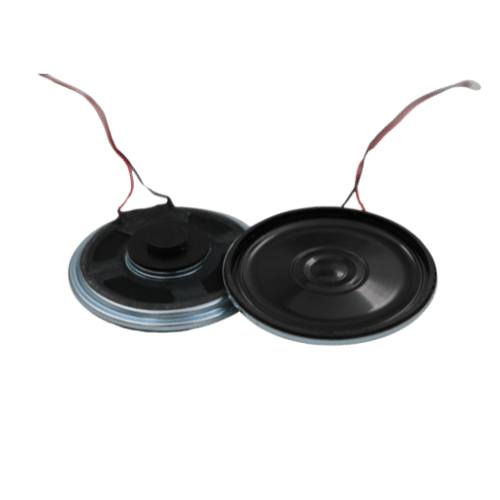

CC40W050BN50GP	40x8.7	50	0.2	0.5	85	550	375 - 5000	NA

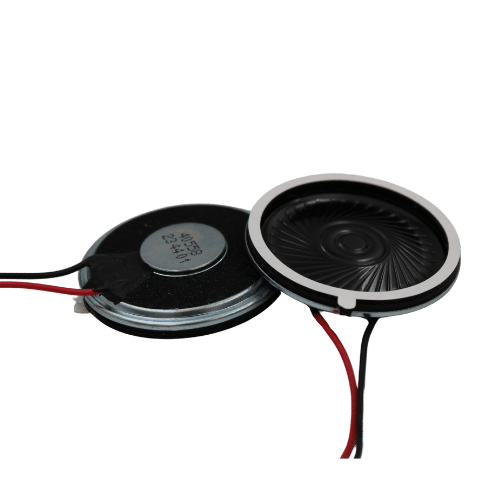

CC40C055BN8GDA	40x6.7	8	0.5	0.7	81	600	350 - 6000	NA
CC40C055BN8G	40x5.5	8	0.5	0.7	80	600	350 - 6000	0.094
SOC40S05BN25G-2	40x5.2	25	0.3	0.5	84	390	200 - 5000	NA
SOC40S05BN25G2BW	40x5.2	25	0.3	0.5	84	390	200 - 5000	NA

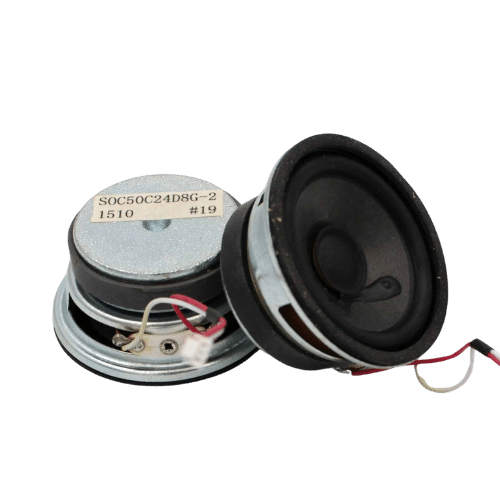

SOC50C24D8G-7	50x24.8	8	2	4	79.5	180	100 - 20000	NA
SOC50W24D8G	50x24.6	8	2	4	81	180	80 - 20000	NA

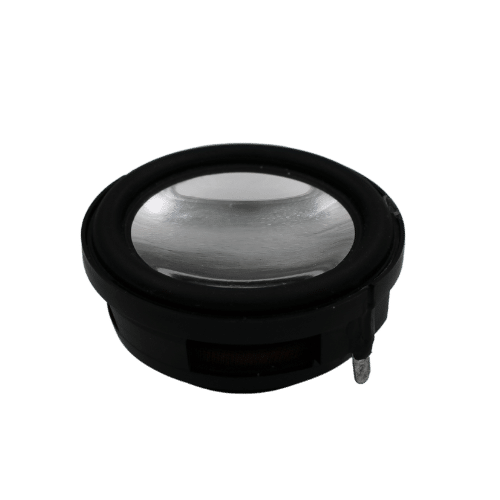

CC50L235XN4	50x23.5	4	5	6	77	120	100 - 20000	NA
OD20722X25CV BW1	50x22.6	25	1	2	85	300	-	NA
OD20722X8CVC BW	50x22.6	8	1	2	84	300	-	NA
OD20722Y25LV	50x22.6	25	0.3	0.8	87	390	-	NA
SOD20722X25CV	50x22.6	25	1	2	83	300	60 - 8000	NA
SOD20722X4CVT-CC§	50x22.6	4	1	2	83	360	100 - 14000	0.211
SOD20722X50CV	50x22.6	50	1	2	85	300	150 - 12500	0.211

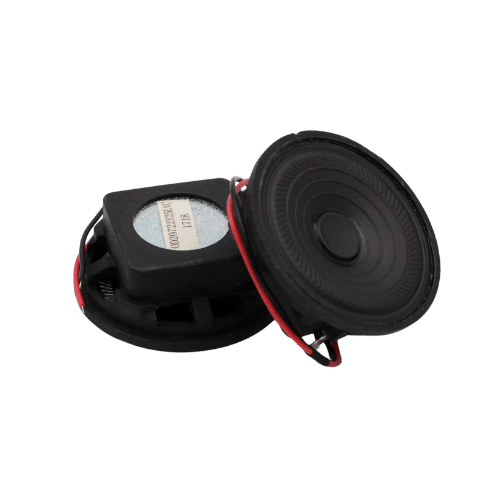

SOD20722Y25LVC	50x22.6	25	0.3	0.8	85	390	120 - 9000	NA
CC50V0185YF4	50x18.5	4	1	2	84	300	150 - 20000	NA
OD20722X50CH	50x18.2	50	1	2	85	300	-	NA

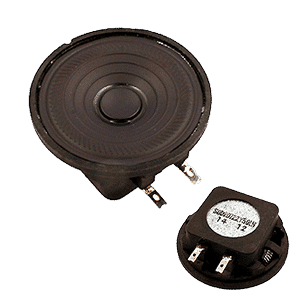

SOD20722X25CH	50x18.2	25	1	2	87	300	150 - 20000	0.211

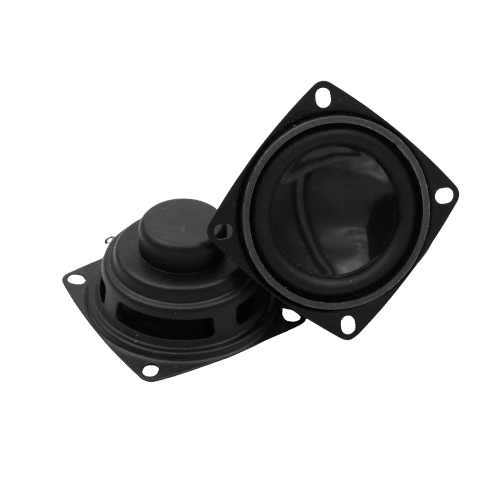

CS53H280DN4G	53x53x28	4	5	10	76	150	100 - 20000	NA
CS53L25DN4	53x53x25	4	3	5	77	320	180 - 20000	NA

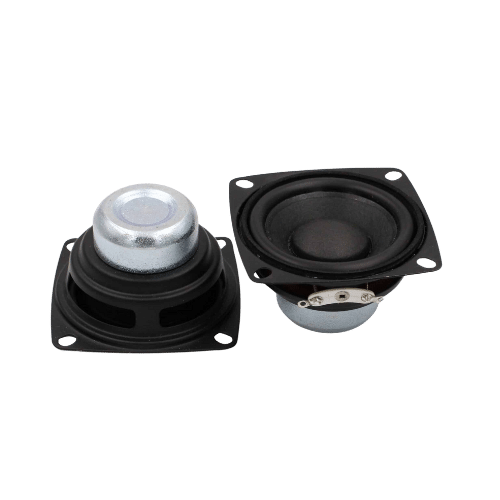

CO53S30DN4	53x30	4	10	15	81	180	100 - 15000	NA
CO53S30DN8	53x30	8	10	15	81	180	100 - 15000	NA
SOD20722X8CHCRP	53.75x21.5	8	1	2	63	300	110 - 15000	0.211

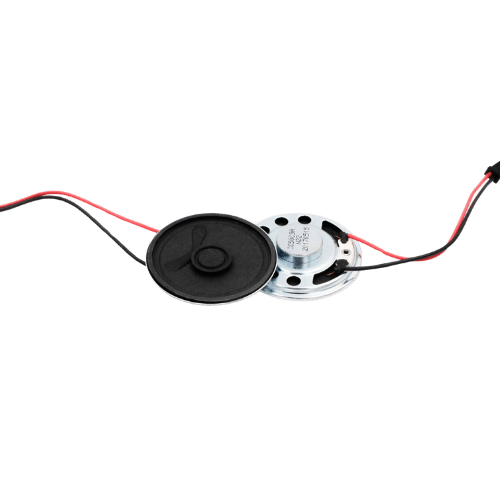

CC50C09AN22	50x9	22	0.2	0.4	80	500	300 - 8000	NA
OC50S07Y50	50x7.9	50	0.5	0.8	85	300	-	NA
CS50C28DN4GF	50x28	4	5	10	74	135	-	NA
CS50S28DN4GF	50x28	4	5	10	74	135	-	NA
SOD20722X25CV-CR	50x25.5	25	1	2	83	300	70 - 9000	NA
SOC50C24D8G-1	50x24.8	8	2	4	79.5	180	100 - 20000	NA

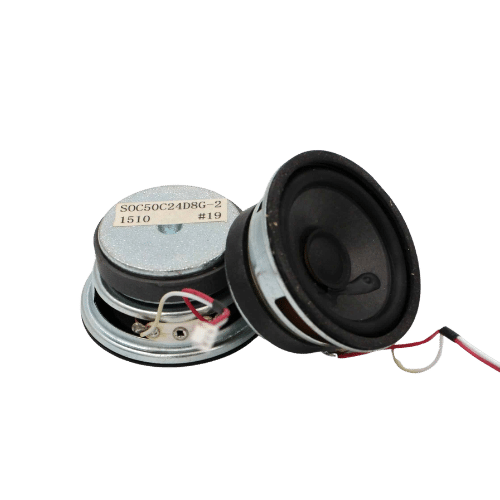

SOC50C24D8G-4	50x24.8	8	2	4	79.5	180	100 - 20000	0.293
SOC50C24D8G-6	50x24.8	8	2	4	79.5	180	100 - 20000	NA
CR7030S18AN8	70x30x18	8	5	8	77	420	-	NA

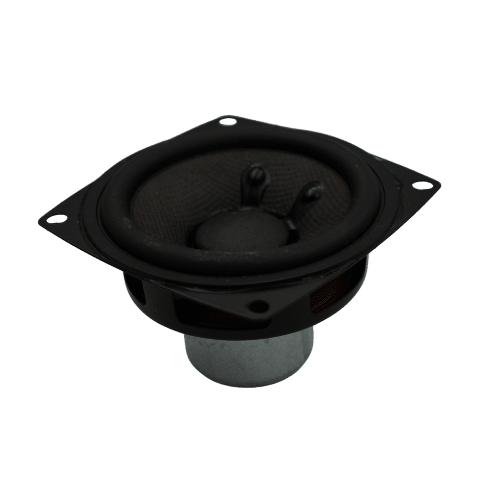

TS68S36DN4F	68.3x68.3x41.4	4	10	15	82	100	100 - 18000	NA
OD2071X8C1P	64x21.5	8	1	2	87	340	-	NA

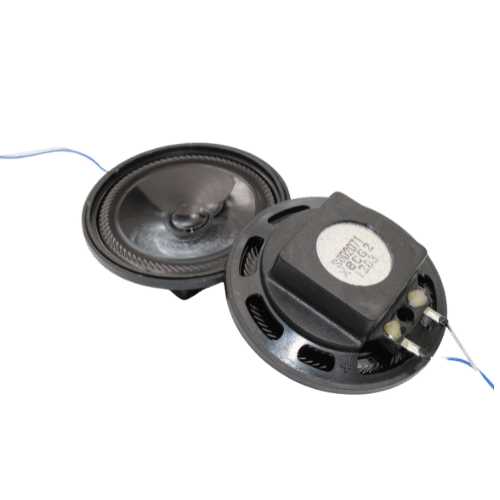

SOD2071X8CG2	64x21	8	1	2	86	400	150 - 10000	NA
OD2071Z50	64x19.35	50	1	2	87	340	-	NA
SOD2071X8	64x19.35	8	1	2	86.5	400	120 - 8500	0.211
SOD2071Z25	64x19.35	25	1	2	87	340	140 - 9000	NA
SOD2071Z8C1	64x19.35	8	1	2	87	340	-	NA

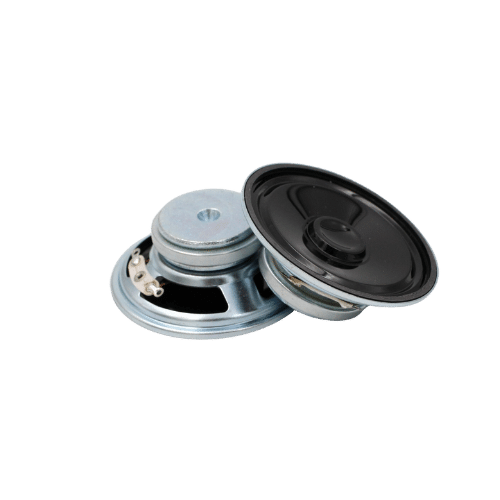

CC57S021BN4G	57x21	4	4	5	87.5	550	300 - 7000	NA

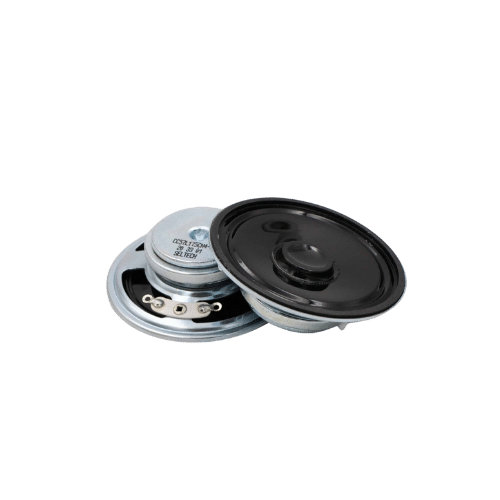

CC57L175CN4-2	57x17.5	4	4	5	88	550	300 - 7000	NA
CS53H310BN4WPG	53x53x31	4	10	12	80	210	100 - 20000	NA
CS53S305DF8	53x53x30.5	8			NA	160	-	NA

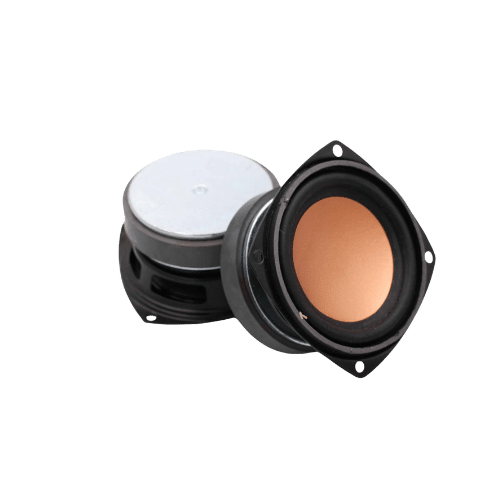

CS78S43DF4A	78x78x43	4	10	15	88	110	100 - 14000	NA
CS78S410DF8	78x78x41	8	15	20	78	150	-	NA
CS78S41AF4A	78x78x41	4	10	15	85	220	125 - 20000	NA
TS78V390DF6	78x39	6	15	30	80	90	40 - 3000	NA

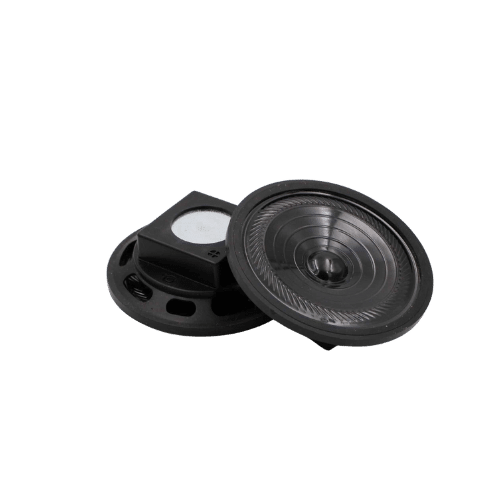

CC64H196XF8	64x19.6	8	1	2	84	450	-	NA
CC52S27DN8G	52x27.5	8	2	3	78	160	-	NA
CC52S28DN8G	52x28	8	2	3	84	160	-	NA
CC50S05BN22G	50x5	22	1	2	83	400	-	NA
OC50C24D4G-2	50x24	4	2	4	82	180	-	NA

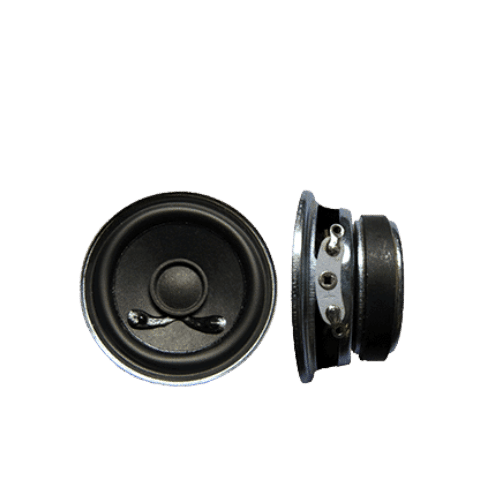

SOC50S24D8G-1	50x24.8	8	2	4	82	180	-	0.290

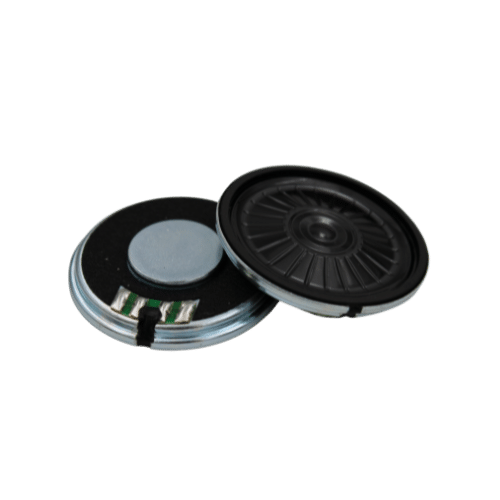

CC40S064BN8GW	40x6.4	8	2	3	79	480	-	NA
CC20C032UN8	20x3.2	8	0.5	1	77	1000	-	NA

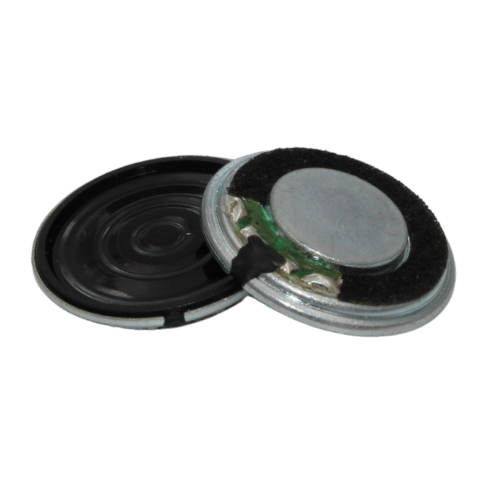

CC20S032UN8W	20x3.2	8	1	1.2	77	1100	-	NA

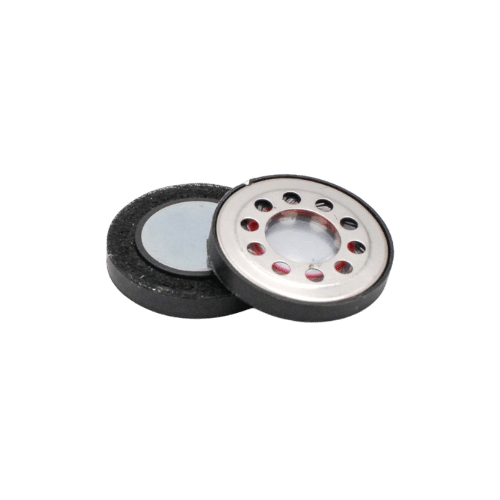

CC20S038CN8	20x3.8	8	0.5	0.8	78	600	-	NA
CC18C05ZN4	18x5.2	4	1	1.2	72	350	-	NA
CC18S040BN4	18x4	4	1	1.2	76	1100	-	NA
CC18S040BN8	18x4	8	1	1.2	77	800	-	NA
CC18S040BN8-1	18x4	8	1	1.2	76	1100	-	NA

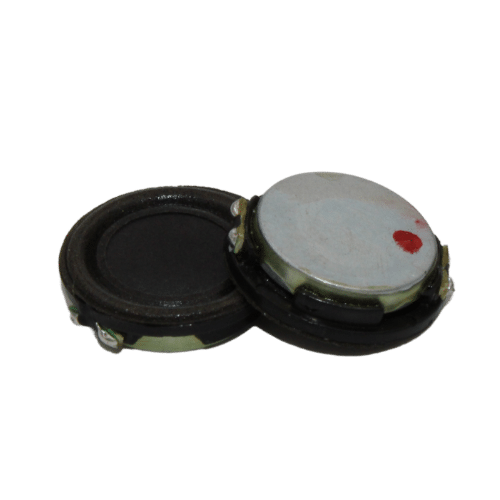

CC18S05YN4	18x5.2	4	1	1.5	72	350	250-20000	NA
CS78F41CN4GFW	80x80x41	4	10	15	79	110	-	NA
CR3411S040BN4	34x11x4	4	2	3	75	700	450 - 20000	0.055
CR1511L035UN8	15x11x3.5	8	0.7	1	68.5	850	300 - 20000	0.026
CR1609S030BN8	16x9x3	8	0.5	0.8	70	950	400 - 20000	NA
CR1813L025UN8-2	18x13x2.5	8	0.7	1	75.5	800	400 - 13000	0.026
SOR4030S11ZN25	40x28.5x11.5	25	1	1.5	75	450	210 - 12000	0.116
CS66L31DF8	66x31	8	10	15	79	250	100 - 20000	NA
BR1511L035UN6	15x11x3.5	6	1	1.2	72	900	475 - 20000	0.026
BR1511L035UN6-WP	15x11x3.5	6	1	1.2	72.5	900	475 - 20000	0.026
CR1609L030BN8	16x9x3	8	0.5	0.8	70	900	325 - 10000	NA
SOD20722X8CH	50x18.2	8	1	2	84	300	150 - 16000	0.211
SOD20722X8CV	50x22.6	8	1	2	83	300	70 - 8000	0.211
SOD20722Y50LH	50x18.2	50	0.3	0.8	85	390	150 - 9200	0.211
SOD20722Y50LV-R1	53.75x19.5	50	0.3	0.8	87	390	150 - 10000	0.211
SOC52S22DN4	52x22.5	4	2	4	80	160	80 - 20000	NA
SOD2071X50	64x19.35	50	1	2	85	420	150 - 12000	0.211
SOD2071Z8	64x19.35	8	1	2	86	340	140 - 9000	0.211
SOR4020S08Z4-2	40x20x8	4	1	2	80	700	400 - 20000	NA
SOR4020C08Z4	40x20x8	4	1	2	81	700	400 - 20000	NA
SOD20722X8CV-CR	50x22.6	8	1	2	84	300	60 - 8000	NA
SOD20722Y50LV	50x22.6	50	0.3	0.8	85	390	150 - 9000	0.211

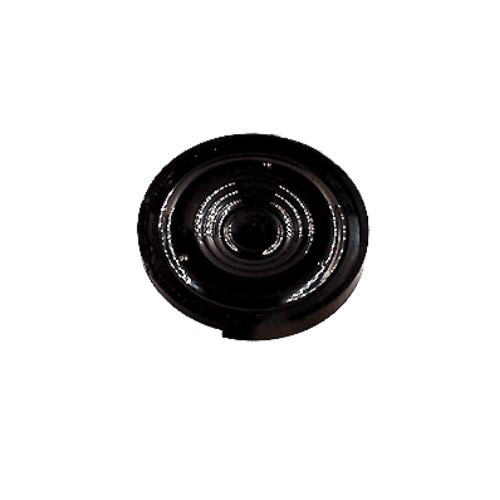

SOC50C07Y50	50x7.9	50	0.5	0.8	82	300	150 - 4500	0.097
SOC50C24D8G-5	50x24.8	8	2	4	79.5	180	100 - 20000	0.293
SOC50C24D8R	52x24	8	2	4	81	180	100 - 20000	0.290
SOC50S24D4	50x23.5	4	2	4	81	180	100 - 20000	NA
SOD20722X4CVC	50x22.6	4	1	2	85	300	110 - 16000	NA
SOD02902Y50L	34x4.1	50	0.3	0.5	82	450	150 - 20000	NA
SOD02902Y8L	34x4.1	8	0.3	0.5	80	450	150 - 20000	0.060
SOC36S05B8-1	36x5.8	8	1	1.5	78	380	200 - 20000	NA
SOD01621Y25LV	38x14.3	25	0.3	0.8	81	440	180 - 8000	0.151
CC40W18DN4G	40x18	4	3	4	70	300	110 - 10000	NA
CR1511L035UN8GDA	15x11x4,99	8	0.7	1	68.5	850	300 - 20000	0.026
CR1609L030BN8GDA	16x9x3,45	8	0.5	0.8	70	900	325 - 10000	0.026
CR1813L025UN8WPGDA2	18x13x3.1	8	0.7	1	75.5	800	400 - 13000	0.026

Filter: Reset

#wtbp-table-75_746925_wrapper table {border-collapse: collapse;} #wtbp-table-75_746925_wrapper th {color: #3b3b3c;font-size: 14px;text-align: center;} #wtbp-table-75_746925_wrapper td {font-size: 12px;} #wtbp-table-75_746925 td {text-align: center;} #wtbp-table-75_746925 .thumbnail img, #wtbp-table-75_746925 .wtbpAddToCartWrapper {margin-left: auto;margin-right: auto;} #wtbp-table-75_746925_wrapper .wtbpFiltersWrapper select {max-width: 90%;} .wtbpModalContent {width: 80%;}

Dynamic speakers

At Seltech, we provide high-quality speakers designed for exceptional sound performance and reliability. Our speakers are engineered to meet diverse acoustic requirements and can be customized for different devices and systems. Whether you need compact speakers for portable electronics or robust units for industrial applications, our solutions ensure clear and accurate audio reproduction to enhance the user experience.

Name	Dimensions [mm](Ø x t)(l x w x t)	Impedance (Ohm or Ω)	Rated power [W]	Max. power [W]	Sensitivity @ 1kHz, 1W/1m [dB SPL]	Resonance frequency f0 [Hz]	Frequency range [Hz]	Carbon Footprint [Kg CO2 eq.]
CR1511L035YN8WP	15x11x3.5	8	1	1.5	76	1000	500 - 20000	NA
BR1511L035YN8-WP	15x11x3.5	8	1	1.5	72.5	910	450 - 20000	NA
CR1511S033YN8WDA	15x11x3.3	8	0.5	1	74.5	850	360 - 19500	0.026
CR1511L030UN8-2	15x11x3	8	0.8	1	73	900	300 - 20000	0.026
CR1511L030UN8GDA	15x11x3	8	0.8	-	73	600	-	0.026
BR1511L030YN6	15x11x3	6	0.7	1	72.5	900	500 - 20000	NA
CR1511L025YN8WP	15x11x2.5	8	0.8	1.2	74	850	300 - 20000	NA
BR1511L025YN8	15x11x2.5	8	0.8	-	73	850	450 - 20000	NA
BR1511L025YN8WP	15x11x2.5	8	0.8	-	73	850	450 - 20000	NA
GR1511S025YN7Z	15x11x2.45	7	1	-	73.5	760	400 - 20000	NA
GR1407S030YN8WP	13.6x6.6x3.0	8	0.5	0.7	68	950	550 - 20000	NA
CR1511L035UN8GDARI-4	15x11x4.28	8	0.7	1	68.5	850	300 - 20000	NA
BR1511L035UN6-WPDA	15x11x3.5	6	1	1.2	72.5	900	475 - 20000	0.026
CR1609S030BN8GDAC-4	16x9x3,35	8	0.5	0.8	70	900	325 - 10000	0.028
CR1609S020YN8Z	16x9x2	8	0.8	1	93	900	550 - 20000	NA
CR1506L025YN8WP	15x6x2.5	8	0.5	0.7	72	950	500 - 20000	NA
CS18S059YO8	18x5.9	8	0.8	1.5	69		550 - 15000	NA
TR1813L042YN8GDAP-2	18x13x5.35	8	0.7	1	72.5	800	370 - 20000	NA
TR1813L042YN8	18x13x4.2	8	0.7	1	72.5	800	370 - 20000	NA
CR1813L025UN8DA	18x13x2.58	8	0.7	1	75.5	800	400 - 13000	0.026
CO1810C037YN8	18x10x7	8	0.5	0.8	75	1300	800 - 17000	NA
GR1712S025YN8	17x12x2.45	8	1	1.5	75	870	500 - 20000	NA
CR1712S023YN8Z	17x12x2.3	8	1	1.5	76.5	850	600 - 20000	NA
LR2008W030YN8	20x8x30	8	0.1		74	260	200 - 20000	NA
LR2008S030YN8	20x8x3	8	0.045	-	74	260	150 - 20000	NA
CC20C046YN8MP	20x4.6	8	1	2	78	850	500 - 20000	NA
BO3020S057YN4	30x20x6	4	1		85.5	800	650 - 1900	NA
CS29C085ZN8	29.4x29.4x10	8	2	3	75	350	275 - 6500	NA
CC28L070AN4	28x7	4	2	3	74	400	200 - 15000	NA
CC28L05YN8WPDAP	28x6.25	8	0.5	1	NA	700	500 - 5750	NA
CC28C05YN8WPDAP	28x6.25	8	0.5	1	NA	700	500 - 5750	NA
WD11903Y8HBI	28x6	8	0.5	1	86	700	450-8000	NA
WD11903Y8HI	28x6	8	0.5	1	86	700	450-8000	NA
CC28S055BN8G	28x5.5	8	2	3	78	550	310 - 20000	NA
CC28S054BN8G	28x5.4	8	1	2	79	500	350 - 20000	NA
CS28L112AN8	28x28x11.2	8	2	3	72	380	-	NA
CC28C100ZN8	28x10.1	8	2	3	77	350	150 - 20000	NA
CC27V115YN4	27x11.5	4	2	3	77	300	200 - 20000	NA
CC26S046BN8G	26x4.6	8	1	1.2	79	700	-	NA
CC26S04BN8G	26x4.6	8	1	1.5	78	600	450 - 20000	NA
CO2516C058YN4WPPM	25x16x5.8	4	1.5	2	80.2	750	450 - 20000	NA
BO2516S048YN8	25x16x4.8	8	1	1.2	79	800	500 - 20000	NA
CR2514S060YN4	25x14x6	4	2	2.5	72	650	250-20000	NA
CR2514S045YN4	24x14x4.5	4	2	2.2	81	850	500 - 17500	NA
CC36L163AN4	36x16.3	4	2	3	74	190	100 - 20000	NA
CC36C163DN8	36x16.3	8	3	4	73	190	100 - 20000	NA
SOD02902Y50LCBT-1	34x4.1	50	0.3	0.5	80	450	200 - 20000	NA
CR3411S040BN8	34x11x4	8	2	2.5	77	800	500 - 20000	NA
CC35L12YN50	34.5x12.3	50	0.5	1	83	500	330 - 13000	0.105
TC32S20DN4	32x20.8	4	3	4.5	74	210	100 - 20000	NA
CC31C165AN4P	31x21.5	4	3	4	75	380	200 - 20000	0.120
CC31L165AN4	31x16.5	4	3	4	71	380	200 - 20000	NA
CS32H084YN8G	31.6x31.6x8.35	8	3	5	76	280	200 - 20000	NA
CC31S09UN4	31.2x10.5	4	3.5	5	79	300	200 - 15000	NA
CC31C09UN4	31.2x10.5	4	3.5	5	79	300	200 - 15000	NA
CC30S05BN8	30x5	8	1	2	81	550	400 - 20000	NA
CC40S195DN4	40x19.75	4	3	5	81	160	120 - 20000	NA
CC40C195DN4P	40x19.5	4	3	5	82	160	125 - 20000	NA
CC40C195DN8P	40x19.5	8	3	5	82	160	125 - 20000	NA
SOC40S19DN4	40x19	4	5	10	76	160	100 - 20000	0.301
SOC40S18D4	40x18.5	4	2	4	76	170	100 - 20000	NA
SOC40S18D4 BW	40x18.5	4	2	4	75	170	-	NA
SOC40W18DN4	40x18.5	4	2	4	75	170	95 - 20000	NA
CC40W183AN4	40x18.3	4	1	2	79	230	125 - 20000	NA
CC40C182DN4	40x18.2	4	3	4	78	170	100 - 20000	NA
CR4013L040YN8	40x13x4	8	2	2.2	76	550	300 - 20000	NA
TO40S31EN4	40.5x31.5	4	2	3	67	85	-	NA
CC36S066YN4	36x6.6	8	2	3	81	300	150 - 20000	NA
CC36S048BN8	36x4.8	8	1	1.5	80	570	350 - 20000	NA
CC40S050BN32	40x5	32	1	1.5	85	600	400 - 6000	NA
CR4040L20DN4	40x40x20	4	4	5	75	230	150 - 20000	NA
CR4030C071BN4	40x30x7.1	4	2	2.5	75	480	200 - 17500	NA
CR4030C071BN4-2	40x30x7.1	4	2	2.5	75	480	200 - 17500	NA
OR4030S11Z8	40x30x11.5	8	2	3	79	450	-	NA
SOR4030S11Z4	40x30x11.5	4	2	3	79	450	280 - 12000	NA
BR4029C123ZN8P	40x28.5x12.3	8	2	4	82	500	250 - 15000	NA
SOC40C22D4-2	40x22.5	4	1	2	78	230	150 - 15000	NA
CC40C217XN4G	40x21.7	4	5	5.5	77	160	100 - 20000	NA
CC40C21XN4	40x21.5	4	5	8	78	150	130 - 20000	NA
CC40L215WN4	40x21.5	4	5	8	78	150	150 - 20000	NA
CC40S21XN4	40x21.5	4	5	8	78	150	130 - 20000	NA
CR4020C084ZN8F	40x20x8.4	8	2	3	82	650	500 - 3000	NA
CR4020L084HN16	40x20x8.4	16	1	2	82	600	400 - 2000	NA
CR4020S08ZN8F	40x20x8.4	8	2	3	80	650	450 - 3500	NA
SOR4020S08Z8	40x20x8	8	1	2	80	700	-	NA
SOD20722X4CV	50x18.2	4	1	2	83	300	-	NA
SOD20621Y50LH	50x17	50	0.3	0.8	83	390	150 - 10000	NA
CC50S120BN8G	50x12	8	2	3	86	750	500 - 4500	NA
CC50S12BN4A	50x11.5	4	2	3	82	550	300 - 10000	NA
CC45S050BN4G	45x5	4	1	1.5	80	580	320 - 6000	NA
SOR4028S16YN8	45x33x24.5	8	3	5	79	260	150 - 6000	NA
SOR4028S16YN8PR	45x33x24.5	8	3	5	79	260	150 - 6100	NA
CC45H240WN4	45x24	4	5	6	77	130	125 - 13500	NA
CC42C192WN4WPA	41.7x21.1	4	1	4	80.5	140	125 - 15000	NA
SOC40S09D4	40x9.5	4	2	4	81.5	350	200 - 12000	NA
CC40C090BN50GP	40x9.05	50	0.2	0.5	84	550	350 - 6000	NA
CC40W050BN50GP	40x8.7	50	0.2	0.5	85	550	375 - 5000	NA
CC40C055BN8GDA	40x6.7	8	0.5	0.7	81	600	350 - 6000	NA
CC40C055BN8G	40x5.5	8	0.5	0.7	80	600	350 - 6000	0.094
SOC40S05BN25G-2	40x5.2	25	0.3	0.5	84	390	200 - 5000	NA
SOC40S05BN25G2BW	40x5.2	25	0.3	0.5	84	390	200 - 5000	NA
SOC50C24D8G-7	50x24.8	8	2	4	79.5	180	100 - 20000	NA
SOC50W24D8G	50x24.6	8	2	4	81	180	80 - 20000	NA
CC50L235XN4	50x23.5	4	5	6	77	120	100 - 20000	NA
OD20722X25CV BW1	50x22.6	25	1	2	85	300	-	NA
OD20722X8CVC BW	50x22.6	8	1	2	84	300	-	NA
OD20722Y25LV	50x22.6	25	0.3	0.8	87	390	-	NA
SOD20722X25CV	50x22.6	25	1	2	83	300	60 - 8000	NA

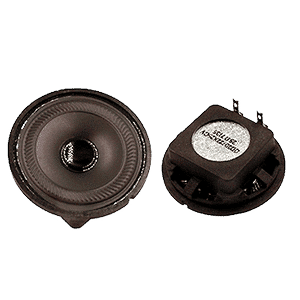

SOD20722X4CVT-CC§	50x22.6	4	1	2	83	360	100 - 14000	0.211
SOD20722X50CV	50x22.6	50	1	2	85	300	150 - 12500	0.211
SOD20722Y25LVC	50x22.6	25	0.3	0.8	85	390	120 - 9000	NA
CC50V0185YF4	50x18.5	4	1	2	84	300	150 - 20000	NA
OD20722X50CH	50x18.2	50	1	2	85	300	-	NA
SOD20722X25CH	50x18.2	25	1	2	87	300	150 - 20000	0.211
CS53H280DN4G	53x53x28	4	5	10	76	150	100 - 20000	NA
CS53L25DN4	53x53x25	4	3	5	77	320	180 - 20000	NA
CO53S30DN4	53x30	4	10	15	81	180	100 - 15000	NA
CO53S30DN8	53x30	8	10	15	81	180	100 - 15000	NA
SOD20722X8CHCRP	53.75x21.5	8	1	2	63	300	110 - 15000	0.211
CC50C09AN22	50x9	22	0.2	0.4	80	500	300 - 8000	NA
OC50S07Y50	50x7.9	50	0.5	0.8	85	300	-	NA
CS50C28DN4GF	50x28	4	5	10	74	135	-	NA
CS50S28DN4GF	50x28	4	5	10	74	135	-	NA
SOD20722X25CV-CR	50x25.5	25	1	2	83	300	70 - 9000	NA
SOC50C24D8G-1	50x24.8	8	2	4	79.5	180	100 - 20000	NA
SOC50C24D8G-4	50x24.8	8	2	4	79.5	180	100 - 20000	0.293
SOC50C24D8G-6	50x24.8	8	2	4	79.5	180	100 - 20000	NA
CR7030S18AN8	70x30x18	8	5	8	77	420	-	NA
TS68S36DN4F	68.3x68.3x41.4	4	10	15	82	100	100 - 18000	NA
OD2071X8C1P	64x21.5	8	1	2	87	340	-	NA
SOD2071X8CG2	64x21	8	1	2	86	400	150 - 10000	NA
OD2071Z50	64x19.35	50	1	2	87	340	-	NA
SOD2071X8	64x19.35	8	1	2	86.5	400	120 - 8500	0.211
SOD2071Z25	64x19.35	25	1	2	87	340	140 - 9000	NA
SOD2071Z8C1	64x19.35	8	1	2	87	340	-	NA
CC57S021BN4G	57x21	4	4	5	87.5	550	300 - 7000	NA
CC57L175CN4-2	57x17.5	4	4	5	88	550	300 - 7000	NA
CS53H310BN4WPG	53x53x31	4	10	12	80	210	100 - 20000	NA
CS53S305DF8	53x53x30.5	8			NA	160	-	NA
CS78S43DF4A	78x78x43	4	10	15	88	110	100 - 14000	NA
CS78S410DF8	78x78x41	8	15	20	78	150	-	NA
CS78S41AF4A	78x78x41	4	10	15	85	220	125 - 20000	NA
TS78V390DF6	78x39	6	15	30	80	90	40 - 3000	NA
CC64H196XF8	64x19.6	8	1	2	84	450	-	NA
CC52S27DN8G	52x27.5	8	2	3	78	160	-	NA
CC52S28DN8G	52x28	8	2	3	84	160	-	NA
CC50S05BN22G	50x5	22	1	2	83	400	-	NA
OC50C24D4G-2	50x24	4	2	4	82	180	-	NA
SOC50S24D8G-1	50x24.8	8	2	4	82	180	-	0.290
CC40S064BN8GW	40x6.4	8	2	3	79	480	-	NA
CC20C032UN8	20x3.2	8	0.5	1	77	1000	-	NA
CC20S032UN8W	20x3.2	8	1	1.2	77	1100	-	NA
CC20S038CN8	20x3.8	8	0.5	0.8	78	600	-	NA
CC18C05ZN4	18x5.2	4	1	1.2	72	350	-	NA
CC18S040BN4	18x4	4	1	1.2	76	1100	-	NA
CC18S040BN8	18x4	8	1	1.2	77	800	-	NA
CC18S040BN8-1	18x4	8	1	1.2	76	1100	-	NA
CC18S05YN4	18x5.2	4	1	1.5	72	350	250-20000	NA
CS78F41CN4GFW	80x80x41	4	10	15	79	110	-	NA
CR3411S040BN4	34x11x4	4	2	3	75	700	450 - 20000	0.055
CR1511L035UN8	15x11x3.5	8	0.7	1	68.5	850	300 - 20000	0.026
CR1609S030BN8	16x9x3	8	0.5	0.8	70	950	400 - 20000	NA
CR1813L025UN8-2	18x13x2.5	8	0.7	1	75.5	800	400 - 13000	0.026
SOR4030S11ZN25	40x28.5x11.5	25	1	1.5	75	450	210 - 12000	0.116
CS66L31DF8	66x31	8	10	15	79	250	100 - 20000	NA
BR1511L035UN6	15x11x3.5	6	1	1.2	72	900	475 - 20000	0.026
BR1511L035UN6-WP	15x11x3.5	6	1	1.2	72.5	900	475 - 20000	0.026
CR1609L030BN8	16x9x3	8	0.5	0.8	70	900	325 - 10000	NA
SOD20722X8CH	50x18.2	8	1	2	84	300	150 - 16000	0.211
SOD20722X8CV	50x22.6	8	1	2	83	300	70 - 8000	0.211
SOD20722Y50LH	50x18.2	50	0.3	0.8	85	390	150 - 9200	0.211
SOD20722Y50LV-R1	53.75x19.5	50	0.3	0.8	87	390	150 - 10000	0.211
SOC52S22DN4	52x22.5	4	2	4	80	160	80 - 20000	NA
SOD2071X50	64x19.35	50	1	2	85	420	150 - 12000	0.211
SOD2071Z8	64x19.35	8	1	2	86	340	140 - 9000	0.211
SOR4020S08Z4-2	40x20x8	4	1	2	80	700	400 - 20000	NA
SOR4020C08Z4	40x20x8	4	1	2	81	700	400 - 20000	NA
SOD20722X8CV-CR	50x22.6	8	1	2	84	300	60 - 8000	NA
SOD20722Y50LV	50x22.6	50	0.3	0.8	85	390	150 - 9000	0.211
SOC50C07Y50	50x7.9	50	0.5	0.8	82	300	150 - 4500	0.097
SOC50C24D8G-5	50x24.8	8	2	4	79.5	180	100 - 20000	0.293
SOC50C24D8R	52x24	8	2	4	81	180	100 - 20000	0.290
SOC50S24D4	50x23.5	4	2	4	81	180	100 - 20000	NA
SOD20722X4CVC	50x22.6	4	1	2	85	300	110 - 16000	NA
SOD02902Y50L	34x4.1	50	0.3	0.5	82	450	150 - 20000	NA
SOD02902Y8L	34x4.1	8	0.3	0.5	80	450	150 - 20000	0.060
SOC36S05B8-1	36x5.8	8	1	1.5	78	380	200 - 20000	NA
SOD01621Y25LV	38x14.3	25	0.3	0.8	81	440	180 - 8000	0.151
CC40W18DN4G	40x18	4	3	4	70	300	110 - 10000	NA
CR1511L035UN8GDA	15x11x4,99	8	0.7	1	68.5	850	300 - 20000	0.026
CR1609L030BN8GDA	16x9x3,45	8	0.5	0.8	70	900	325 - 10000	0.026
CR1813L025UN8WPGDA2	18x13x3.1	8	0.7	1	75.5	800	400 - 13000	0.026

Filter: Reset

#wtbp-table-75_807810_wrapper table {border-collapse: collapse;} #wtbp-table-75_807810_wrapper th {color: #3b3b3c;font-size: 14px;text-align: center;} #wtbp-table-75_807810_wrapper td {font-size: 12px;} #wtbp-table-75_807810 td {text-align: center;} #wtbp-table-75_807810 .thumbnail img, #wtbp-table-75_807810 .wtbpAddToCartWrapper {margin-left: auto;margin-right: auto;} #wtbp-table-75_807810_wrapper .wtbpFiltersWrapper select {max-width: 90%;} .wtbpModalContent {width: 80%;}

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

25 July 2024

Originally inspired by telegraph and telecom domains, the audio industry has seen first uses of the audio equalization with…

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

25 July 2024

Originally inspired by telegraph and telecom domains, the audio industry has seen first uses of the audio equalization with…

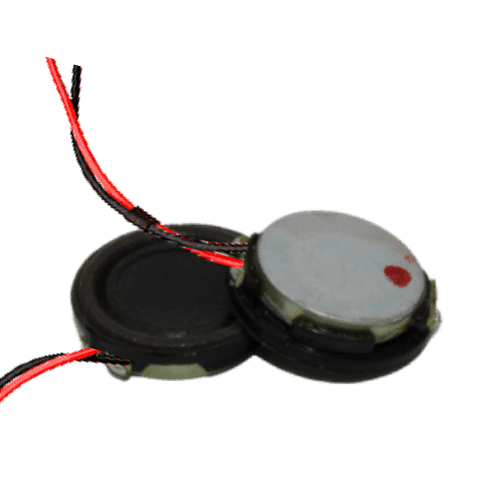

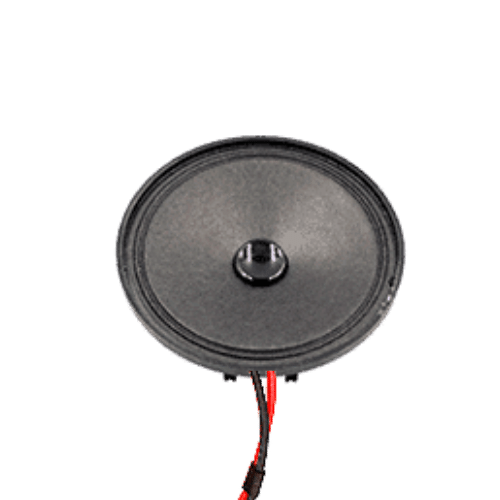

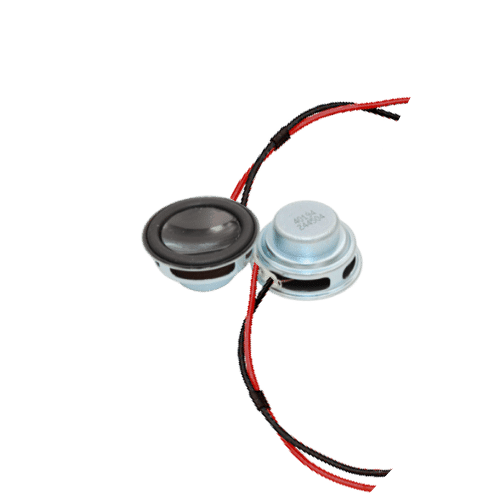

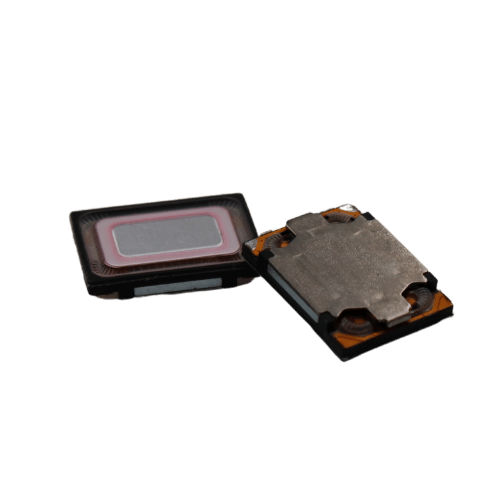

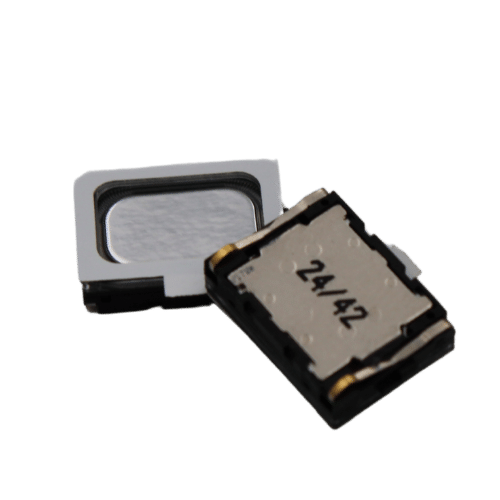

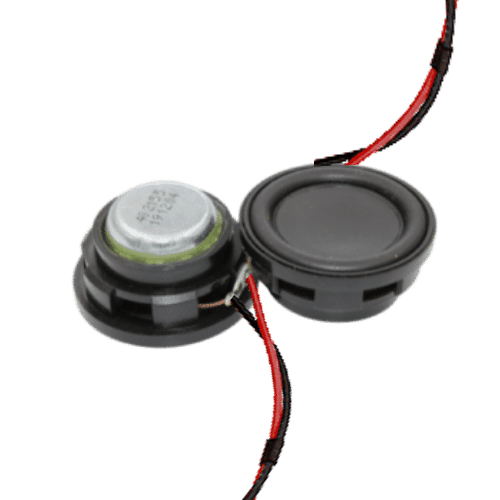

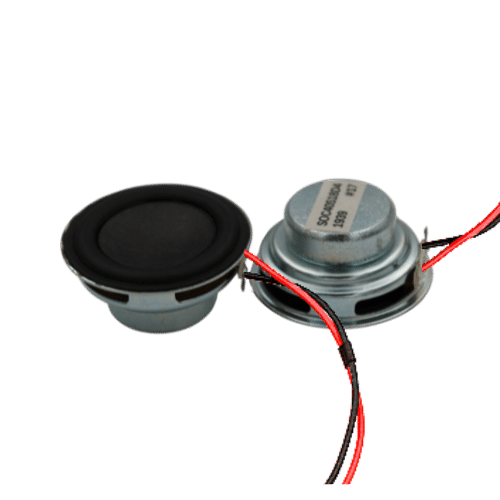

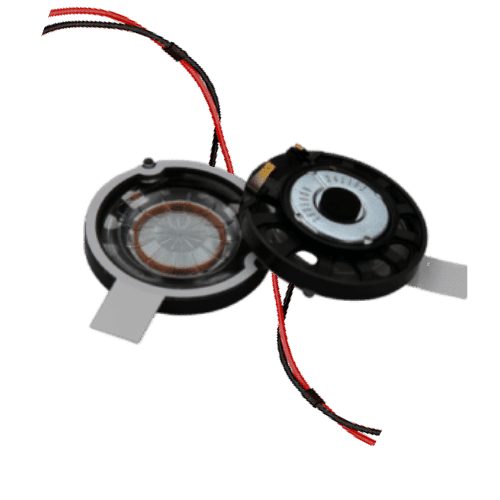

Dynamic speakers

At Seltech, we provide high-quality speakers designed for exceptional sound performance and reliability. Our speakers are engineered to meet diverse acoustic requirements and can be customized for different devices and systems. Whether you need compact speakers for portable electronics or robust units for industrial applications, our solutions ensure clear and accurate audio reproduction to enhance the user experience.

Name	Dimensions [mm](Ø x t)(l x w x t)	Impedance (Ohm or Ω)	Rated power [W]	Max. power [W]	Sensitivity @ 1kHz, 1W/1m [dB SPL]	Resonance frequency f0 [Hz]	Frequency range [Hz]	Carbon Footprint [Kg CO2 eq.]
CR1511L035YN8WP	15x11x3.5	8	1	1.5	76	1000	500 - 20000	NA
BR1511L035YN8-WP	15x11x3.5	8	1	1.5	72.5	910	450 - 20000	NA
CR1511S033YN8WDA	15x11x3.3	8	0.5	1	74.5	850	360 - 19500	0.026
CR1511L030UN8-2	15x11x3	8	0.8	1	73	900	300 - 20000	0.026
CR1511L030UN8GDA	15x11x3	8	0.8	-	73	600	-	0.026
BR1511L030YN6	15x11x3	6	0.7	1	72.5	900	500 - 20000	NA
CR1511L025YN8WP	15x11x2.5	8	0.8	1.2	74	850	300 - 20000	NA
BR1511L025YN8	15x11x2.5	8	0.8	-	73	850	450 - 20000	NA
BR1511L025YN8WP	15x11x2.5	8	0.8	-	73	850	450 - 20000	NA
GR1511S025YN7Z	15x11x2.45	7	1	-	73.5	760	400 - 20000	NA
GR1407S030YN8WP	13.6x6.6x3.0	8	0.5	0.7	68	950	550 - 20000	NA
CR1511L035UN8GDARI-4	15x11x4.28	8	0.7	1	68.5	850	300 - 20000	NA
BR1511L035UN6-WPDA	15x11x3.5	6	1	1.2	72.5	900	475 - 20000	0.026
CR1609S030BN8GDAC-4	16x9x3,35	8	0.5	0.8	70	900	325 - 10000	0.028
CR1609S020YN8Z	16x9x2	8	0.8	1	93	900	550 - 20000	NA
CR1506L025YN8WP	15x6x2.5	8	0.5	0.7	72	950	500 - 20000	NA
CS18S059YO8	18x5.9	8	0.8	1.5	69		550 - 15000	NA
TR1813L042YN8GDAP-2	18x13x5.35	8	0.7	1	72.5	800	370 - 20000	NA
TR1813L042YN8	18x13x4.2	8	0.7	1	72.5	800	370 - 20000	NA
CR1813L025UN8DA	18x13x2.58	8	0.7	1	75.5	800	400 - 13000	0.026
CO1810C037YN8	18x10x7	8	0.5	0.8	75	1300	800 - 17000	NA
GR1712S025YN8	17x12x2.45	8	1	1.5	75	870	500 - 20000	NA
CR1712S023YN8Z	17x12x2.3	8	1	1.5	76.5	850	600 - 20000	NA
LR2008W030YN8	20x8x30	8	0.1		74	260	200 - 20000	NA
LR2008S030YN8	20x8x3	8	0.045	-	74	260	150 - 20000	NA
CC20C046YN8MP	20x4.6	8	1	2	78	850	500 - 20000	NA
BO3020S057YN4	30x20x6	4	1		85.5	800	650 - 1900	NA
CS29C085ZN8	29.4x29.4x10	8	2	3	75	350	275 - 6500	NA
CC28L070AN4	28x7	4	2	3	74	400	200 - 15000	NA
CC28L05YN8WPDAP	28x6.25	8	0.5	1	NA	700	500 - 5750	NA
CC28C05YN8WPDAP	28x6.25	8	0.5	1	NA	700	500 - 5750	NA
WD11903Y8HBI	28x6	8	0.5	1	86	700	450-8000	NA
WD11903Y8HI	28x6	8	0.5	1	86	700	450-8000	NA
CC28S055BN8G	28x5.5	8	2	3	78	550	310 - 20000	NA
CC28S054BN8G	28x5.4	8	1	2	79	500	350 - 20000	NA
CS28L112AN8	28x28x11.2	8	2	3	72	380	-	NA
CC28C100ZN8	28x10.1	8	2	3	77	350	150 - 20000	NA
CC27V115YN4	27x11.5	4	2	3	77	300	200 - 20000	NA
CC26S046BN8G	26x4.6	8	1	1.2	79	700	-	NA
CC26S04BN8G	26x4.6	8	1	1.5	78	600	450 - 20000	NA
CO2516C058YN4WPPM	25x16x5.8	4	1.5	2	80.2	750	450 - 20000	NA
BO2516S048YN8	25x16x4.8	8	1	1.2	79	800	500 - 20000	NA
CR2514S060YN4	25x14x6	4	2	2.5	72	650	250-20000	NA
CR2514S045YN4	24x14x4.5	4	2	2.2	81	850	500 - 17500	NA
CC36L163AN4	36x16.3	4	2	3	74	190	100 - 20000	NA
CC36C163DN8	36x16.3	8	3	4	73	190	100 - 20000	NA
SOD02902Y50LCBT-1	34x4.1	50	0.3	0.5	80	450	200 - 20000	NA
CR3411S040BN8	34x11x4	8	2	2.5	77	800	500 - 20000	NA
CC35L12YN50	34.5x12.3	50	0.5	1	83	500	330 - 13000	0.105
TC32S20DN4	32x20.8	4	3	4.5	74	210	100 - 20000	NA
CC31C165AN4P	31x21.5	4	3	4	75	380	200 - 20000	0.120
CC31L165AN4	31x16.5	4	3	4	71	380	200 - 20000	NA
CS32H084YN8G	31.6x31.6x8.35	8	3	5	76	280	200 - 20000	NA
CC31S09UN4	31.2x10.5	4	3.5	5	79	300	200 - 15000	NA
CC31C09UN4	31.2x10.5	4	3.5	5	79	300	200 - 15000	NA
CC30S05BN8	30x5	8	1	2	81	550	400 - 20000	NA
CC40S195DN4	40x19.75	4	3	5	81	160	120 - 20000	NA
CC40C195DN4P	40x19.5	4	3	5	82	160	125 - 20000	NA
CC40C195DN8P	40x19.5	8	3	5	82	160	125 - 20000	NA
SOC40S19DN4	40x19	4	5	10	76	160	100 - 20000	0.301
SOC40S18D4	40x18.5	4	2	4	76	170	100 - 20000	NA
SOC40S18D4 BW	40x18.5	4	2	4	75	170	-	NA
SOC40W18DN4	40x18.5	4	2	4	75	170	95 - 20000	NA
CC40W183AN4	40x18.3	4	1	2	79	230	125 - 20000	NA
CC40C182DN4	40x18.2	4	3	4	78	170	100 - 20000	NA
CR4013L040YN8	40x13x4	8	2	2.2	76	550	300 - 20000	NA
TO40S31EN4	40.5x31.5	4	2	3	67	85	-	NA
CC36S066YN4	36x6.6	8	2	3	81	300	150 - 20000	NA
CC36S048BN8	36x4.8	8	1	1.5	80	570	350 - 20000	NA
CC40S050BN32	40x5	32	1	1.5	85	600	400 - 6000	NA
CR4040L20DN4	40x40x20	4	4	5	75	230	150 - 20000	NA
CR4030C071BN4	40x30x7.1	4	2	2.5	75	480	200 - 17500	NA
CR4030C071BN4-2	40x30x7.1	4	2	2.5	75	480	200 - 17500	NA
OR4030S11Z8	40x30x11.5	8	2	3	79	450	-	NA
SOR4030S11Z4	40x30x11.5	4	2	3	79	450	280 - 12000	NA
BR4029C123ZN8P	40x28.5x12.3	8	2	4	82	500	250 - 15000	NA
SOC40C22D4-2	40x22.5	4	1	2	78	230	150 - 15000	NA
CC40C217XN4G	40x21.7	4	5	5.5	77	160	100 - 20000	NA
CC40C21XN4	40x21.5	4	5	8	78	150	130 - 20000	NA
CC40L215WN4	40x21.5	4	5	8	78	150	150 - 20000	NA
CC40S21XN4	40x21.5	4	5	8	78	150	130 - 20000	NA
CR4020C084ZN8F	40x20x8.4	8	2	3	82	650	500 - 3000	NA
CR4020L084HN16	40x20x8.4	16	1	2	82	600	400 - 2000	NA
CR4020S08ZN8F	40x20x8.4	8	2	3	80	650	450 - 3500	NA
SOR4020S08Z8	40x20x8	8	1	2	80	700	-	NA
SOD20722X4CV	50x18.2	4	1	2	83	300	-	NA
SOD20621Y50LH	50x17	50	0.3	0.8	83	390	150 - 10000	NA
CC50S120BN8G	50x12	8	2	3	86	750	500 - 4500	NA
CC50S12BN4A	50x11.5	4	2	3	82	550	300 - 10000	NA
CC45S050BN4G	45x5	4	1	1.5	80	580	320 - 6000	NA
SOR4028S16YN8	45x33x24.5	8	3	5	79	260	150 - 6000	NA
SOR4028S16YN8PR	45x33x24.5	8	3	5	79	260	150 - 6100	NA
CC45H240WN4	45x24	4	5	6	77	130	125 - 13500	NA
CC42C192WN4WPA	41.7x21.1	4	1	4	80.5	140	125 - 15000	NA
SOC40S09D4	40x9.5	4	2	4	81.5	350	200 - 12000	NA
CC40C090BN50GP	40x9.05	50	0.2	0.5	84	550	350 - 6000	NA
CC40W050BN50GP	40x8.7	50	0.2	0.5	85	550	375 - 5000	NA
CC40C055BN8GDA	40x6.7	8	0.5	0.7	81	600	350 - 6000	NA
CC40C055BN8G	40x5.5	8	0.5	0.7	80	600	350 - 6000	0.094
SOC40S05BN25G-2	40x5.2	25	0.3	0.5	84	390	200 - 5000	NA
SOC40S05BN25G2BW	40x5.2	25	0.3	0.5	84	390	200 - 5000	NA
SOC50C24D8G-7	50x24.8	8	2	4	79.5	180	100 - 20000	NA
SOC50W24D8G	50x24.6	8	2	4	81	180	80 - 20000	NA
CC50L235XN4	50x23.5	4	5	6	77	120	100 - 20000	NA
OD20722X25CV BW1	50x22.6	25	1	2	85	300	-	NA
OD20722X8CVC BW	50x22.6	8	1	2	84	300	-	NA
OD20722Y25LV	50x22.6	25	0.3	0.8	87	390	-	NA
SOD20722X25CV	50x22.6	25	1	2	83	300	60 - 8000	NA
SOD20722X4CVT-CC§	50x22.6	4	1	2	83	360	100 - 14000	0.211
SOD20722X50CV	50x22.6	50	1	2	85	300	150 - 12500	0.211
SOD20722Y25LVC	50x22.6	25	0.3	0.8	85	390	120 - 9000	NA
CC50V0185YF4	50x18.5	4	1	2	84	300	150 - 20000	NA
OD20722X50CH	50x18.2	50	1	2	85	300	-	NA
SOD20722X25CH	50x18.2	25	1	2	87	300	150 - 20000	0.211
CS53H280DN4G	53x53x28	4	5	10	76	150	100 - 20000	NA
CS53L25DN4	53x53x25	4	3	5	77	320	180 - 20000	NA
CO53S30DN4	53x30	4	10	15	81	180	100 - 15000	NA
CO53S30DN8	53x30	8	10	15	81	180	100 - 15000	NA
SOD20722X8CHCRP	53.75x21.5	8	1	2	63	300	110 - 15000	0.211
CC50C09AN22	50x9	22	0.2	0.4	80	500	300 - 8000	NA
OC50S07Y50	50x7.9	50	0.5	0.8	85	300	-	NA
CS50C28DN4GF	50x28	4	5	10	74	135	-	NA
CS50S28DN4GF	50x28	4	5	10	74	135	-	NA
SOD20722X25CV-CR	50x25.5	25	1	2	83	300	70 - 9000	NA
SOC50C24D8G-1	50x24.8	8	2	4	79.5	180	100 - 20000	NA
SOC50C24D8G-4	50x24.8	8	2	4	79.5	180	100 - 20000	0.293
SOC50C24D8G-6	50x24.8	8	2	4	79.5	180	100 - 20000	NA
CR7030S18AN8	70x30x18	8	5	8	77	420	-	NA
TS68S36DN4F	68.3x68.3x41.4	4	10	15	82	100	100 - 18000	NA
OD2071X8C1P	64x21.5	8	1	2	87	340	-	NA
SOD2071X8CG2	64x21	8	1	2	86	400	150 - 10000	NA
OD2071Z50	64x19.35	50	1	2	87	340	-	NA
SOD2071X8	64x19.35	8	1	2	86.5	400	120 - 8500	0.211
SOD2071Z25	64x19.35	25	1	2	87	340	140 - 9000	NA
SOD2071Z8C1	64x19.35	8	1	2	87	340	-	NA
CC57S021BN4G	57x21	4	4	5	87.5	550	300 - 7000	NA
CC57L175CN4-2	57x17.5	4	4	5	88	550	300 - 7000	NA
CS53H310BN4WPG	53x53x31	4	10	12	80	210	100 - 20000	NA
CS53S305DF8	53x53x30.5	8			NA	160	-	NA
CS78S43DF4A	78x78x43	4	10	15	88	110	100 - 14000	NA
CS78S410DF8	78x78x41	8	15	20	78	150	-	NA
CS78S41AF4A	78x78x41	4	10	15	85	220	125 - 20000	NA
TS78V390DF6	78x39	6	15	30	80	90	40 - 3000	NA
CC64H196XF8	64x19.6	8	1	2	84	450	-	NA
CC52S27DN8G	52x27.5	8	2	3	78	160	-	NA
CC52S28DN8G	52x28	8	2	3	84	160	-	NA
CC50S05BN22G	50x5	22	1	2	83	400	-	NA
OC50C24D4G-2	50x24	4	2	4	82	180	-	NA
SOC50S24D8G-1	50x24.8	8	2	4	82	180	-	0.290
CC40S064BN8GW	40x6.4	8	2	3	79	480	-	NA
CC20C032UN8	20x3.2	8	0.5	1	77	1000	-	NA
CC20S032UN8W	20x3.2	8	1	1.2	77	1100	-	NA
CC20S038CN8	20x3.8	8	0.5	0.8	78	600	-	NA
CC18C05ZN4	18x5.2	4	1	1.2	72	350	-	NA
CC18S040BN4	18x4	4	1	1.2	76	1100	-	NA
CC18S040BN8	18x4	8	1	1.2	77	800	-	NA
CC18S040BN8-1	18x4	8	1	1.2	76	1100	-	NA
CC18S05YN4	18x5.2	4	1	1.5	72	350	250-20000	NA
CS78F41CN4GFW	80x80x41	4	10	15	79	110	-	NA
CR3411S040BN4	34x11x4	4	2	3	75	700	450 - 20000	0.055
CR1511L035UN8	15x11x3.5	8	0.7	1	68.5	850	300 - 20000	0.026
CR1609S030BN8	16x9x3	8	0.5	0.8	70	950	400 - 20000	NA
CR1813L025UN8-2	18x13x2.5	8	0.7	1	75.5	800	400 - 13000	0.026
SOR4030S11ZN25	40x28.5x11.5	25	1	1.5	75	450	210 - 12000	0.116
CS66L31DF8	66x31	8	10	15	79	250	100 - 20000	NA
BR1511L035UN6	15x11x3.5	6	1	1.2	72	900	475 - 20000	0.026
BR1511L035UN6-WP	15x11x3.5	6	1	1.2	72.5	900	475 - 20000	0.026
CR1609L030BN8	16x9x3	8	0.5	0.8	70	900	325 - 10000	NA
SOD20722X8CH	50x18.2	8	1	2	84	300	150 - 16000	0.211
SOD20722X8CV	50x22.6	8	1	2	83	300	70 - 8000	0.211
SOD20722Y50LH	50x18.2	50	0.3	0.8	85	390	150 - 9200	0.211
SOD20722Y50LV-R1	53.75x19.5	50	0.3	0.8	87	390	150 - 10000	0.211
SOC52S22DN4	52x22.5	4	2	4	80	160	80 - 20000	NA
SOD2071X50	64x19.35	50	1	2	85	420	150 - 12000	0.211
SOD2071Z8	64x19.35	8	1	2	86	340	140 - 9000	0.211
SOR4020S08Z4-2	40x20x8	4	1	2	80	700	400 - 20000	NA
SOR4020C08Z4	40x20x8	4	1	2	81	700	400 - 20000	NA
SOD20722X8CV-CR	50x22.6	8	1	2	84	300	60 - 8000	NA
SOD20722Y50LV	50x22.6	50	0.3	0.8	85	390	150 - 9000	0.211
SOC50C07Y50	50x7.9	50	0.5	0.8	82	300	150 - 4500	0.097
SOC50C24D8G-5	50x24.8	8	2	4	79.5	180	100 - 20000	0.293
SOC50C24D8R	52x24	8	2	4	81	180	100 - 20000	0.290
SOC50S24D4	50x23.5	4	2	4	81	180	100 - 20000	NA
SOD20722X4CVC	50x22.6	4	1	2	85	300	110 - 16000	NA
SOD02902Y50L	34x4.1	50	0.3	0.5	82	450	150 - 20000	NA
SOD02902Y8L	34x4.1	8	0.3	0.5	80	450	150 - 20000	0.060
SOC36S05B8-1	36x5.8	8	1	1.5	78	380	200 - 20000	NA
SOD01621Y25LV	38x14.3	25	0.3	0.8	81	440	180 - 8000	0.151
CC40W18DN4G	40x18	4	3	4	70	300	110 - 10000	NA
CR1511L035UN8GDA	15x11x4,99	8	0.7	1	68.5	850	300 - 20000	0.026
CR1609L030BN8GDA	16x9x3,45	8	0.5	0.8	70	900	325 - 10000	0.026
CR1813L025UN8WPGDA2	18x13x3.1	8	0.7	1	75.5	800	400 - 13000	0.026

Filter: Reset

#wtbp-table-75_156802_wrapper table {border-collapse: collapse;} #wtbp-table-75_156802_wrapper th {color: #3b3b3c;font-size: 14px;text-align: center;} #wtbp-table-75_156802_wrapper td {font-size: 12px;} #wtbp-table-75_156802 td {text-align: center;} #wtbp-table-75_156802 .thumbnail img, #wtbp-table-75_156802 .wtbpAddToCartWrapper {margin-left: auto;margin-right: auto;} #wtbp-table-75_156802_wrapper .wtbpFiltersWrapper select {max-width: 90%;} .wtbpModalContent {width: 80%;}

Acoustic components (1136)

Capacitive / Multifunctional Sensors (98)

DSP Systems (32)

Hearing aid components (26)

Wireless Systems (4)

z-Non classé (44)

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

Dynamic speakers

Dynamic speakers

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

Dynamic speakers

Solution provider

Navigate

Newsletter

Acoustic components (1136)

Capacitive / Multifunctional Sensors (98)

DSP Systems (32)

Hearing aid components (26)

Wireless Systems (4)

z-Non classé (44)

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

Dynamic speakers

Dynamic speakers​

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

Search for specific product:

Categories:

Latest News:

Stiffness controlled diaphragm as a possible sound attenuation solution

Dynamic speakers​

Solution provider

Navigate

Newsletter

Dynamic speakers

Dynamic speakers
