RAQ-33862-000

RAQ-33862-000

Driver PN: RAQ-33862-000

Redefining Listening: RAQ-33862-000 by Knowles

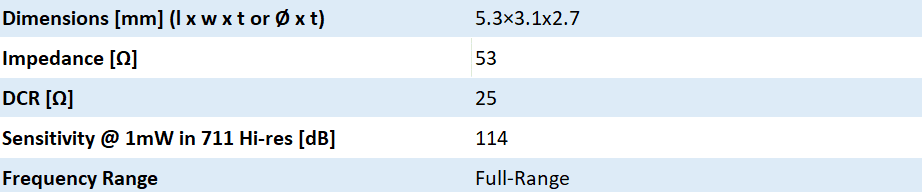

          Driver Characteristics:

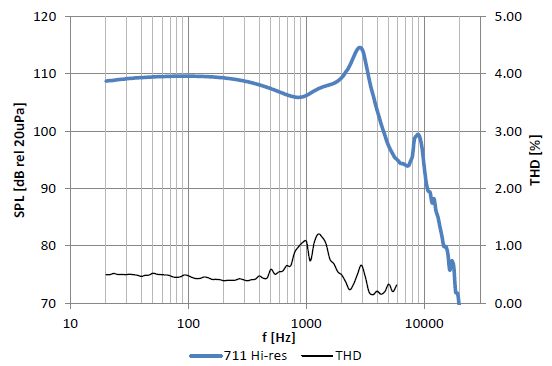

Frequency Response & THD

The RAQ-33862-000 earphone driver stands as an epitome of precision engineering, ensuring superior audio fidelity across a wide frequency range.

Components and Features:

  • Venting Option: The venting options and acoustic dampers are available to simplify crossover circuits and give designers wide latitude in tuning in-ear.
  • Nominal Sensitivity: With a sensitivity level of 114dB at 1mW when measured in a 711 Hi-Res, this driver promises a clear and robust audio output.
  • Total Harmonic Distortion (THD): Sound purity is maintained with a THD of only 0.4% at 94 dB SPL and 0.6% at 100 dB SPL.
  • Frequency Response: It boasts full-range frequency, capturing every nuance of sound, from the deepest bass to the highest treble.

Speaker Characteristics

Frequency Response & THD

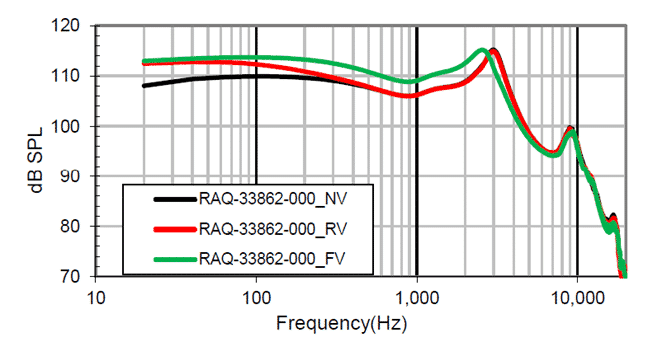

Venting Options

Typical Applications

  • Hearing Aids
  • IEM’s
  • TWS
  • Critical Communication
  • Over-the-counter (OTC) hearing devices
Collect your samples
Need more informations?

Redefining Listening:
RAQ-33862-000 by Knowles

The RAQ-33862-000 is a sound engineering marvel, with superb audio quality and low power consumption. It suits wireless earbuds and hearing aids, and has a top venting option for acoustic tuning. It is made with high automation and traceability for quality and reliability.

Components and Features:

  • Venting Option: The venting options and acoustic dampers are available to simplify crossover circuits and give designers wide latitude in tuning in-ear.
  • Nominal Sensitivity: With a sensitivity level of 114dB at 1mW when measured in a 711 Hi-Res, this driver promises a clear and robust audio output.
  • Total Harmonic Distortion (THD): Sound purity is maintained with a THD of only 0.4% at 94 dB SPL and 0.6% at 100 dB SPL.
  • Frequency Response: It boasts full-range frequency, capturing every nuance of sound, from the deepest bass to the highest treble.

Typical Applications

  • Hearing Aids
  • IEM’s
  • TWS
  • Critical Communication
  • Over-the-counter (OTC) hearing devices

Venting Options

• NV = Non vented • RV = Resistive vented • FV = Fully vented
